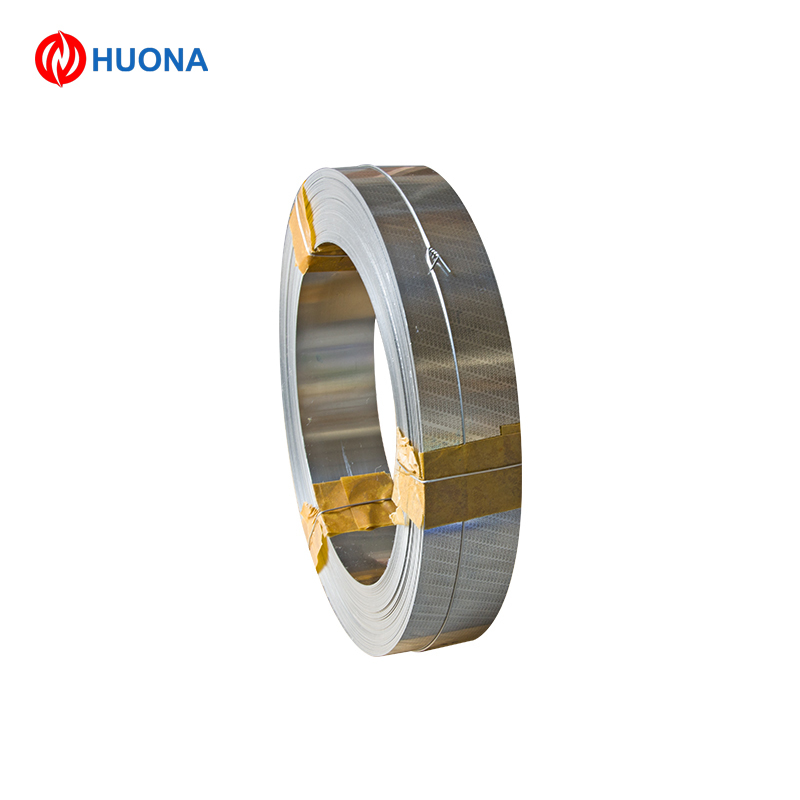

TB200/10 Bimetallic Strip for Thermal Regulation 200°C
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | TB200/10 |
| Minimum Order Quantity | 10-50 KG |
| Price | Negotiable |
| Packaging Details | On Reel/Carton Box |
| Delivery Time | 5-21 days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | TB200/10 Bimetallic Strip | High-Expansion Layer | MnCu18Ni10 |
|---|---|---|---|
| INTERMEDIATE LAYER | Cu | Low-Expansion Layer | FeNi36 |
| Tensile Strength | 420-500MPa | Bond Strength | ≥120MPa (layer Adhesion) |
| Surface Finish | Annealed (Ra ≤1.0μm) | Elongation | ≥15% |
| Highlight | bimetallic strip thermal regulation,thermal bimetal 200°C,TB200/10 bimetallic thermostat |
||
You can tick the products you need and communicate with us in the message board.
Product Description
TB200/10 Bimetallic Strip for Thermal Regulation
Stable Expansion Performance
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | TB200/10 Bimetallic Strip |
| High-Expansion Layer | MnCu18Ni10 |
| Intermediate Layer | Cu |
| Low-Expansion Layer | FeNi36 |
| Tensile Strength | 420-500MPa |
| Bond Strength | ≥120MPa (layer adhesion) |
| Surface Finish | Annealed (Ra ≤1.0μm) |
| Elongation | ≥15% |
Product Overview
The TB200/10 bimetallic strip is a composite material formed by bonding two metal layers with distinct thermal expansion coefficients: a high-expansion layer (Cu-Zn alloy) and a low-expansion layer (Fe-Ni alloy). The "200" denotes its maximum continuous operating temperature (200°C), while "10" refers to its thermal deflection coefficient (10×10⁻⁶/°C in the 20-100°C range). This strip delivers stable, repeatable bending behavior under temperature changes, making it suitable for medium-precision thermal control devices and safety switches.
Standard Designations
- Industry Classification: Conforms to DIN 17155 for bimetallic strip performance
- Material Code: TB200/10 (temperature class/deflection coefficient)
- Equivalent Grades: Similar to Type B in GB/T 4461 and Class 3 in ASTM F2144
Key Features
- Controlled Deflection: 1.0mm bending per 100mm length at 100°C (20°C reference)
- Temperature Stability: Continuous operation at -40°C to 200°C; short-term up to 220°C
- Mechanical Durability: Withstands ≥10,000 thermal cycles without fatigue failure
- Cost-Effective: Balances performance and affordability for general industrial use
- Formability: Easy to cut, bend, and stamp into custom shapes for diverse applications
Technical Specifications
| Attribute | Value |
|---|---|
| Total Thickness | 0.15mm - 1.5mm (tolerance: ±0.01mm) |
| Width Range | 5mm - 100mm (tolerance: ±0.05mm) |
| Layer Thickness Ratio | 1:1 (high-expansion : low-expansion) |
| Tensile Strength | 420-500MPa |
| Elongation | ≥15% |
| Thermal Conductivity | 55W/(m*K) |
| Electrical Resistivity | 0.95Ω*mm²/m (20°C) |
Product Specifications
| Item | Specification |
|---|---|
| Surface Finish | Annealed (Ra ≤1.0μm) |
| Length per Roll | 50m, 100m, 200m (on 200mm plastic spools) |
| Bond Strength | ≥120MPa (layer adhesion) |
| Flatness | ≤0.1mm/m |
| Packaging | Plastic film wrapping + moisture-proof cartons |
Typical Applications
- Small household appliance thermostats (irons, toasters)
- Battery overheat protection devices
- Low-voltage switchgear
- Automotive cabin temperature controls
- Simple industrial temperature triggers
We provide custom slitting, cutting, and forming services for TB200/10 strips. Free samples (100mm×20mm) and thermal cycle test reports are available upon request, with bulk order discounts applicable.
