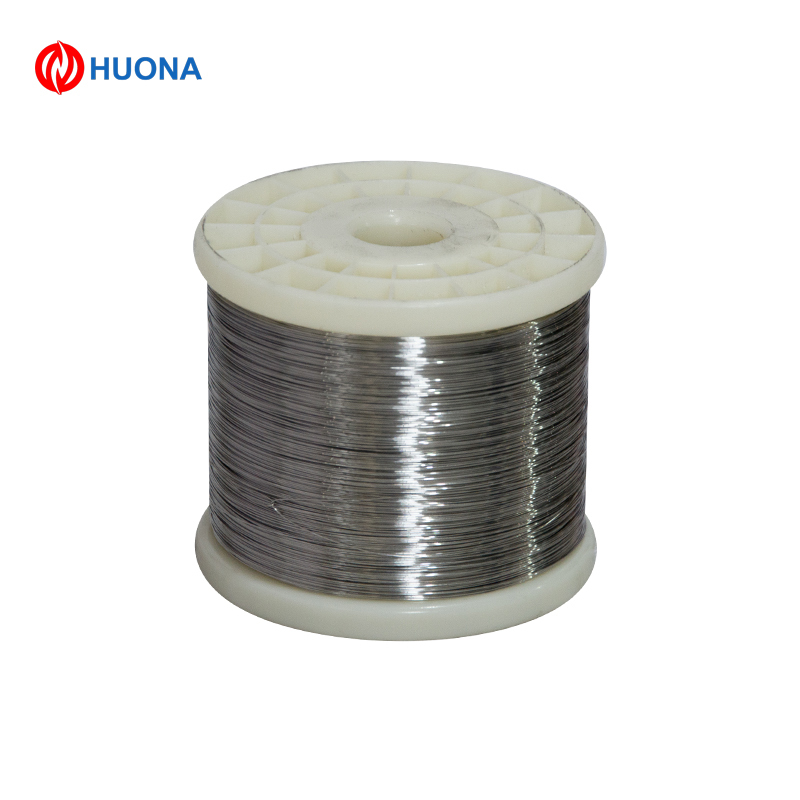

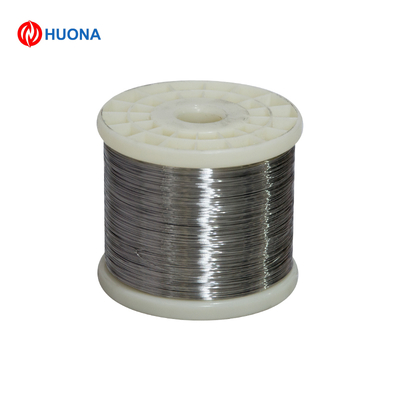

1J85 Soft Magnetic Wire High Permeability Wire for Electronic Components

  • 1J85 Soft Magnetic Wire High Permeability Wire for Electronic Components
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number 1J85
Minimum Order Quantity 10
Price DISCUSS
Packaging Details Wooden Case
Delivery Time 7-21 DAYS
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 500 tons per month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material： NI,Fe,Mo Density 8.75g/cm3
Melting Point 1395 - 1425℃ Curie Point 410℃
Tensile Strength： ≥560MPa Hardness： ≤205
Brand 1j85
You can tick the products you need and communicate with us in the message board.
Leave a Message
Product Description
1J85 is a premium nickel-iron-molybdenum soft magnetic alloy renowned for its exceptional magnetic properties and reliable performance in precision applications. With a nickel content of approximately 80-81.5%, molybdenum at 5-6%, and a balanced composition of iron and trace elements, this alloy stands out for its high initial permeability (over 30 mH/m) and maximum permeability (exceeding 115 mH/m), making it highly sensitive to weak magnetic signals. Its extremely low coercivity (less than 2.4 A/m) ensures minimal hysteresis loss, ideal for high-frequency alternating magnetic fields.


Beyond its magnetic strengths, 1J85 boasts impressive mechanical properties, including a tensile strength of ≥560 MPa and a hardness of ≤205 Hv, enabling easy cold working into wires, strips, and other precise forms. With a Curie temperature of 410°C, it maintains stable magnetic performance even in elevated temperatures, while its density of 8.75 g/cm³ and resistivity of around 55 μΩ·cm further enhance its suitability for demanding environments.


Widely utilized in miniature current transformers, residual current devices, high-frequency inductors, and precision magnetic heads, 1J85 remains a top choice for engineers seeking a blend of sensitivity, durability, and versatility in soft magnetic materials.
