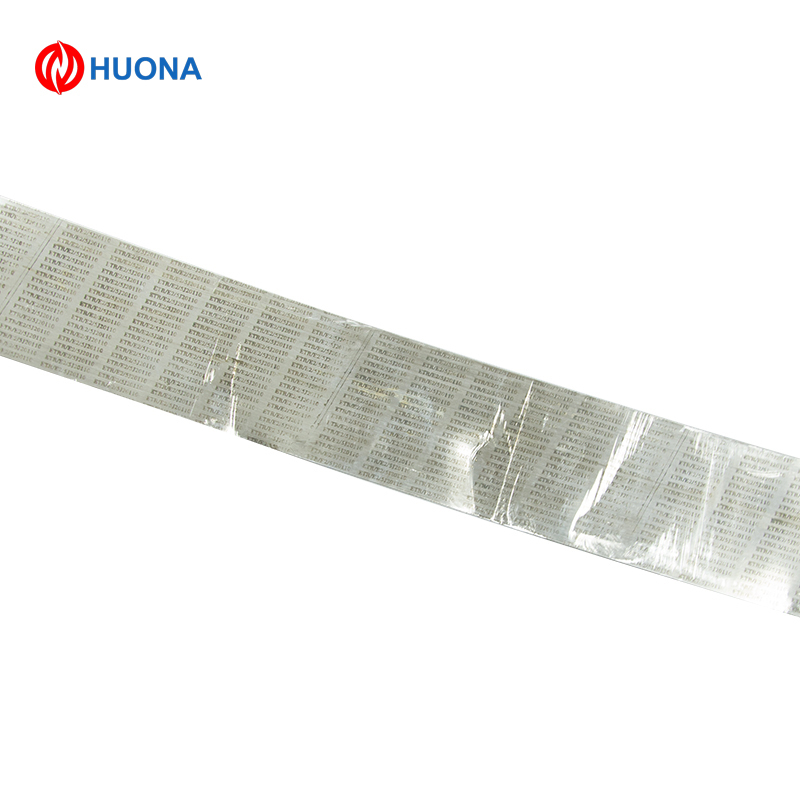

P675R Bimetal Strip Mn75Ni15Cu10 Ni36 for Thermal Applications
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | P675R |
| Minimum Order Quantity | 10-50kg |
| Price | Negotiable |
| Packaging Details | Carton/Wooden case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500 tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Bimetal Strip P675R | High Expansive Layer | Mn75Ni15Cu10 |
|---|---|---|---|
| Low Expansive Layer | Ni36 | Total Thickness Range | 0.1mm - 2.5mm (tolerance: ±0.01mm) |
| Tensile Strength | 480MPa (transverse Direction) | Resistivity(20℃±5℃) | 113(μΩ·cm) |
| Linearity Temperature Range | -20-150℃ | Density | 7.7 G/cm³ |
| Highlight | Mn75Ni15Cu10 bimetal strip,Ni36 thermal bimetal strip,P675R bimetal strip for thermal applications |
||
You can tick the products you need and communicate with us in the message board.
Product Description
P675R/5J20110/TM2/108SP Bimetallic Strip
Reliable thermal response and durable performance for temperature-sensitive applications.
Key Attributes
| Attribute | Value |
|---|---|
| Product Name | Bimetal Strip P675R |
| High Expansive Layer | Mn75Ni15Cu10 |
| Low Expansive Layer | Ni36 |
| Total Thickness Range | 0.1mm - 2.5mm (tolerance: ±0.01mm) |
| Tensile Strength | 480MPa (transverse direction) |
| Resistivity (20℃±5℃) | 113(μΩ·cm) |
| Linearity Temperature Range | -20-150℃ |
| Density | 7.7 g/cm³ |
Product Overview
The P675R bimetallic strip is a high-performance composite material composed of two layers of metals with distinct coefficients of thermal expansion. The high-expansion layer is made of Mn75Ni15Cu10, while the low-expansion layer is Ni36. This combination enables predictable bending or deformation in response to temperature changes.
Standard Designations
- Material Standards: Conforms to DIN 17155 and ASTM B388
- Industry Codes: Class A thermosensitive material under IEC 60730-2-9
- Alternative Designations: Equivalent to Thermalloy 675 and Bimet 75-36
Key Features
- High Deflection Sensitivity: 0.25mm deflection per 10°C at 100mm length (20-100°C range)
- Low Hysteresis: <2°C deviation between heating and cooling response
- Long-Term Stability: <1% deflection loss after 10,000 thermal cycles (-40 to 150°C)
- Electrical Conductivity: 8.5 S/m (enables use in current-carrying thermal switches)
- Corrosion Resistance: Passes 500-hour salt spray test (ASTM B117)
Technical Specifications
| Attribute | Value |
|---|---|
| Total Thickness Range | 0.1mm - 2.5mm (tolerance: ±0.01mm) |
| Width Options | 3mm - 120mm (tolerance: ±0.05mm) |
| Layer Thickness Ratio (High:Low) | 1:1 (custom ratios 2:1, 3:1 available) |
| Operating Temperature Range | -50°C to 180°C (continuous) |
| Maximum Short-Term Temperature | 200°C (≤10 minutes) |
| Tensile Strength | 480MPa (transverse direction) |
| Elastic Limit | 220MPa |
| Thermal Deflection Coefficient | 21.2 × 10⁻⁶ /°C (20-150°C) |
Material Composition
| Layer | Main Elements (wt%) | Trace Elements (max, wt%) |
|---|---|---|
| High-Expansion (Mn75Ni15Cu10) | Mn:75, Ni:15, Cu:10 | C:0.03, Si:0.2, Fe:0.5 |
| Low-Expansion (Ni36) | Ni:36, Fe:64 | C:0.02, Mn:0.3, Si:0.1 |
Product Specifications
| Item | Detail |
|---|---|
| Surface Finish | Annealed (Ra ≤0.8μm) or bright rolled (Ra ≤0.4μm) |
| Cutting Options | Slit strips, cut-to-length pieces, or continuous rolls |
| Length per Roll | 50m, 100m, 300m (on 300mm diameter plastic spools) |
| Adhesion Strength | ≥150MPa (layer bond strength, ASTM D3163) |
| Packaging | Vacuum-sealed in moisture barrier bags with desiccants |
Typical Applications
- Domestic appliance thermostats (ovens, water heaters, dryers)
- Overcurrent protection devices (motor overload relays)
- Fire safety sensors (heat detectors)
- Automotive underhood temperature switches
- Industrial process temperature regulators
We provide custom slitting, forming, and heat treatment services for P675R strips. Free samples (100mm × 20mm) and thermal deflection test reports are available upon request.
