Silver Coated Copper Tape for Electrical Shielding & Connections
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001,SGS |
| Model Number | Silver Plated Copper Strip |
| Minimum Order Quantity | 20-50KG |
| Price | Negotiable |
| Packaging Details | Carton/Woodbox |
| Delivery Time | 5-21days |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 500tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Silver Plating Thickness | 0.5μm–8μm (customizable) | Product Name | Silver Plated Copper Strip |
|---|---|---|---|
| Strip Thickness | 0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable) | Strip Width | 3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable Up To 100mm) |
| Tensile Strength | 260–360 MPa | Operating Temperature | - 70°C To 160°C |
| Highlight | silver coated copper tape,electrical shielding copper tape,conductive adhesive copper tape |
||
You can tick the products you need and communicate with us in the message board.
Product Description

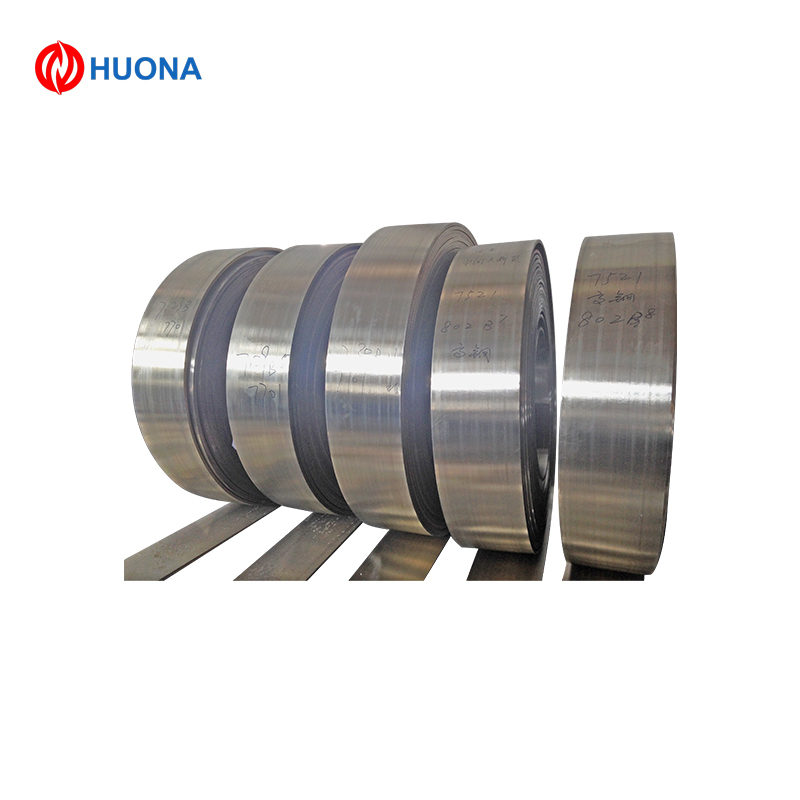

Silver Coated Copper Tape High Conductivity for Electrical Shielding & Precision Connections
Product Overview
Silver-plated copper strip combines the high conductivity of pure copper with enhanced electrical performance and corrosion resistance from silver plating. The copper base provides a stable low-resistance foundation, while the uniform silver plating improves surface conductivity and oxidation resistance. Ideal for electromagnetic shielding, high-frequency transformers, lithium-ion battery tabs, and precision electrical components.
Standard Specifications
- Copper base complies with ASTM B152 (copper sheet and strip standards)
- Silver plating follows ASTM B700 (electrodeposited silver coatings)
- Meets IEC 61238 and MIL-STD-883 standards for electrical materials
Key Features
- Superior surface conductivity for low signal loss in high-frequency applications
- Excellent electromagnetic shielding for sensitive electronic systems
- Strong corrosion resistance in harsh environments
- High dimensional precision with uniform thickness and flatness
- Good formability for custom cutting, bending, and stamping
Technical Specifications
| Attribute | Value |
|---|---|
| Base Copper Purity | ≥99.95% |
| Silver Plating Thickness | 0.5μm–8μm (customizable) |
| Strip Thickness | 0.05mm, 0.1mm, 0.2mm, 0.3mm, 0.5mm, 0.8mm (customizable) |
| Strip Width | 3mm, 5mm, 10mm, 15mm, 20mm, 30mm (customizable up to 100mm) |
| Tensile Strength | 260–360 MPa |
| Elongation | ≥25% |
| Electrical Conductivity | ≥99% IACS |
| Operating Temperature | -70°C to 160°C |
Chemical Composition
| Component | Content (%) |
|---|---|
| Copper (Base) | ≥99.95 |
| Silver (Plating) | ≥99.9 |
| Trace Impurities | ≤0.05 (total) |
Product Specifications
| Item | Specification |
|---|---|
| Length per Roll | 50m, 100m, 300m, 500m (customizable) |
| Packaging | Vacuum-sealed in anti-static bags; packed in cardboard boxes with moisture-proof layers |
| Surface Finish | Mirror-bright silver plating with Ra ≤0.8μm |
| Flatness Tolerance | ≤0.01mm/m (ensures uniform contact) |
| OEM Support | Custom width, thickness, plating thickness, and laser cutting available |
We also provide other plated copper strips including gold-plated and nickel-plated variants. Free samples and detailed technical datasheets available upon request. Custom specifications can be tailored to meet specific shielding, conduction, or battery application requirements.
