High Precision 4J33 Sealing Wire Controlled Expansion Alloy For Hermetic Packaging
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | WIRE |
| Minimum Order Quantity | 1KG |
| Price | negotiable |
| Packaging Details | negotiable |
| Delivery Time | a week |
| Payment Terms | T/T |
| Supply Ability | 100,000 pieces / week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thermal Expansion (30–300°C) | 5.3 × 10⁻⁶ /°C | Density | 8.2 G/cm³ |
|---|---|---|---|
| Electrical Resistivity | 0.48 μΩ·m | Tensile Strength | ≥ 450 MPa |
| Magnetic Properties | Soft Magnetic, Good Permeability And Stability | Surface | Bright, Oxide-free |
| Highlight | High Precision nickel alloy wire,High Precision glass sealing alloy,high Strength glass sealing alloy |
||
You can tick the products you need and communicate with us in the message board.
Product Description

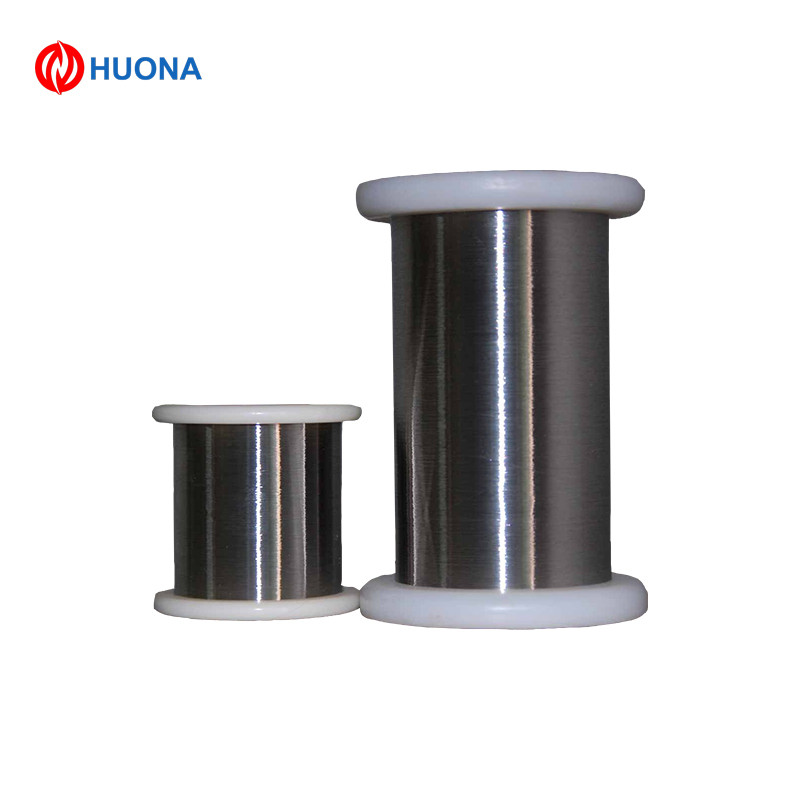

High Precision 4J33 Sealing Wire Controlled Expansion Alloy For Hermetic Packaging
Product Overview
4J33 alloy wire is a precision low-expansion Fe-Ni-Co alloy material specifically designed for hermetic glass-to-metal sealing applications. With approximately 33% nickel and a small amount of cobalt, this alloy offers a thermal expansion coefficient closely matched to hard glass and ceramics. It is widely used in the manufacture of vacuum tubes, infrared sensors, electronic relays, and other high-reliability devices.
Material Composition
-
Nickel (Ni): ~33%
-
Cobalt (Co): ~3–5%
-
Iron (Fe): Balance
-
Others: Mn, Si, C (trace amounts)
Thermal Expansion (30–300°C): ~5.3 × 10⁻⁶ /°C
Density: ~8.2 g/cm³
Electrical Resistivity: ~0.48 μΩ·m
Tensile Strength: ≥ 450 MPa
Magnetic Properties: Soft magnetic, good permeability and stability
Available Specifications
-
Diameter: 0.02 mm to 3.0 mm
-
Surface: Bright, oxide-free
-
Delivery form: Coils, spools, or cut length
-
Condition: Annealed or cold-drawn
-
Custom sizes and packaging available
Key Features
-
Excellent match with hard glass for vacuum-tight sealing
-
Stable thermal expansion for precision components
-
Good corrosion resistance and weldability
-
Clean surface finish, vacuum-compatible
-
Reliable performance in aerospace and electronic applications
Typical Applications
-
Glass-to-metal hermetic seals
-
Vacuum tubes and infrared sensors
-
Relay housings and electronic packaging
-
Optical device enclosures
-
Aerospace-grade connectors and leads
Packaging & Shipping
-
Standard plastic spool, vacuum-sealed or custom packaging
-
Delivery via air, sea, or express
-
Lead time: 7–15 working days depending on order size
