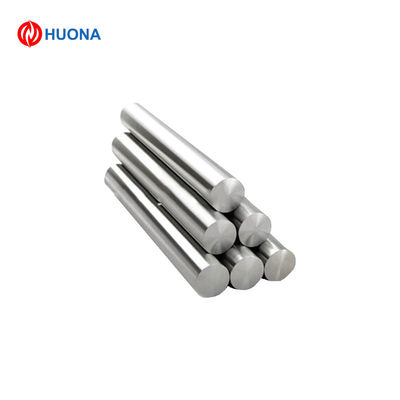

Invar 36 Nickel Iron Cobalt Alloy Rod 4j36 Uns K93600 Uns K93603 1.3912 Ni36 Uns K94610
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 1KG |
| Price | US$12.00-45.00 |
| Packaging Details | 1500tons/Year |
| Delivery Time | WEEK |
| Payment Terms | T/T |
| Supply Ability | 1000kg Per Week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Expansion Alloy | Purity | Alloy |
|---|---|---|---|
| Transport Package | DIN Spool, Carton, Wooden Case | Specification | Customized |
| HS Code | 7505220000 | Production Capacity | 1500tons/Year |
| Highlight | Nickel Iron Cobalt Alloy Rod,Nickel Iron Invar 36 Alloy,Versatile Cobalt Alloy Rod |
||
Product Description
Invar 36 4j36 Uns K93600 Uns K93603 1.3912 Ni36 Nickel Alloy Precision Kovar 4j29 Coil Uns K94610 Nickel Iron Cobalt Alloy Rod
Invar 36, also known as 4J36, is a nickel-iron alloy containing approximately 36% nickel and 64% iron, renowned for its extremely low coefficient of thermal expansion (CTE). This unique property makes it the ideal material for applications requiring dimensional stability across a range of temperatures.
As wire, Invar 36 is commonly used in hermetic sealing, semiconductor packaging, aerospace structures, and precision instruments where thermal expansion must be tightly controlled.
Technical Specifications:
| Property | Value |
|---|---|
| Alloy Name | Invar 36 / 4J36 |
| Chemical Composition | Ni: 36% ±0.5%, Fe: Balance |
| CTE (20–100°C) | ~1.2 × 10⁻⁶ /°C |
| Density | ~8.1 g/cm³ |
| Tensile Strength | 450–650 MPa (annealed) |
| Yield Strength | ≥ 240 MPa |
| Elongation | ≥ 30% |
| Hardness | ~160 HV (annealed) |
| Electrical Resistivity | ~0.78 μΩ·m |
| Magnetic Properties | Magnetic at room temperature |
| Melting Point | ~1425°C |
| Wire Diameter Range | 0.02 mm – 3.0 mm (custom available) |
| Surface Condition | Bright / Annealed / Oxidized |
| Packaging | Spools, coils, or customized on request |
Precision alloys are metal materials with special physical properties (such as magnetic, electrical, thermal and other properties). The vast majority of precision alloys are based on ferrous metals, and only a few are based on non-ferrous metals. Usually include magnetic alloys (see magnetic materials), elastic alloys, expansion alloys, thermal bimetals, electrical alloys, hydrogen storage alloys (see hydrogen storage materials), shape memory alloys, magnetostrictive alloys (see magnetostrictive materials), etc.
Soft magnetic alloys are a class of alloys with high permeability and low coercivity in weak magnetic fields. According to the different elements that make up the alloy, it can be divided into electromagnetic pure iron (industrial pure iron), iron-silicon alloy, iron-nickel alloy, iron-aluminum alloy, iron-silicon-aluminum alloy and iron-cobalt alloy, etc.1J06,1J12,1J17,1J18,1J22,1J30,1J36,1J38,1J46,1J50,1J51,1J54,1J76,1J77,1J79,1J80,1J85,1J87
Permanent magnet alloy not only has high hardness and mechanical properties, but also has strong anti-demagnetization ability, high coercivity value (greater than 20kA/m), magnetic "hard" and other characteristics, so it is also called hard magnetic alloy.2J04,2J07,2J09,2J10,2J31,2J53,2J84,2J85Elastic alloys include high elastic alloys and constant elastic alloys. It is used to make elastic elements such as elastic sensitive elements, energy storage elements and frequency elements in precision instruments.3J01,3J21,3J53Expansion alloys(Invar Alloy) are divided into Kovar alloys, ceramic sealing alloys, low expansion alloys, and constant expansion alloys. Widely used in electronic industry, precision measuring tools, precision instruments and low temperature engineering and other fields.4J28,4J29,4J32,4J33,4J36,4J40,4J42,4J50
Precision alloys with nickel, chromium, aluminum and iron as the main components, the resistivity is about three times higher than that of manganese copper, and has a lower temperature coefficient of resistance and low thermal potential to copper, with good long-term resistance stability and resistance. Oxidation properties.
It is suitable for making precision resistance elements in various measuring instruments and meters, making precision micro-resistance elements and strain gauges.6J10,6J15,6J20,6J22,6J23,6J24
| expansion alloy | ||||||||||
| Grade | C≤ | S≤ | P≤ | Mn | Si | Ni | Cr | Cu | Al | Fe |
| 6J10 | ≤0.05 | ≤0.01 | ≤0.01 | ≤0.3 | ≤0.2 | nI+cO rem | 9-10 | ≤0.2 | ≤0.4 | |
| 6J15 | ≤0.05 | ≤0.02 | ≤0.03 | ≤1.5 | 0.4-1.3 | 55-61 | 15-18 | ≤0.3 | rem | |
| 6J20 | ≤0.05 | ≤0.01 | ≤0.01 | ≤0.7 | 0.4-1.3 | rem | 20-23 | ≤0.3 | ≥1.5 | |
| 6J22 | ≤0.04 | ≤0.01 | ≤0.01 | 0.5-1.5 | ≤0.2 | rem | 19-21.5 | 2.7-3.2 | 2-3 | |
| 6J23 | ≤0.04 | ≤0.01 | ≤0.01 | 0.5-1.5 | ≤0.2 | rem | 19-21.5 | 2-3 | 2.7-3.2 | |
| 6J24 | ≤0.04 | ≤0.01 | ≤0.01 | 1.0-3.0 | 0.9-1.5 | rem | 19-21.5 | 2.7-3.2 | ≤0.5 | |
Constantan alloy
Manganese Copper Alloy
| Brand | Ni | Mn | Cu | |
| Constantan alloy | 6J40 | 39-41 | 1-2 | Rest |
| Manganese Copper Alloy | 6J12 | 2-3 | 11-13 | Rest |
