4J36 Invar Wire For Thermostatic Applications Fe-Ni Alloy Wire With Controlled Thermal Expansion
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | WIRE |
| Minimum Order Quantity | 1KG |
| Price | negotiable |
| Packaging Details | negotiable |
| Delivery Time | a week |
| Payment Terms | T/T |
| Supply Ability | 100,000 pieces / week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Thermal Expansion (20–100°C) | ~1.0–1.5 × 10⁻⁶ /°C | Density | 8.1 G/cm³ |
|---|---|---|---|
| Resistivity | 0.78 μΩ·m | Tensile Strength | ≥ 450 MPa |
| Magnetic Properties | Soft Magnetic, Stable Under Thermal Cycling | Diameter | 0.02 Mm – 3.0 Mm |
| Highlight | Bright 4J36 Invar Wire,4J36 Invar Wire For Thermostatic,Bright nickel alloy wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description

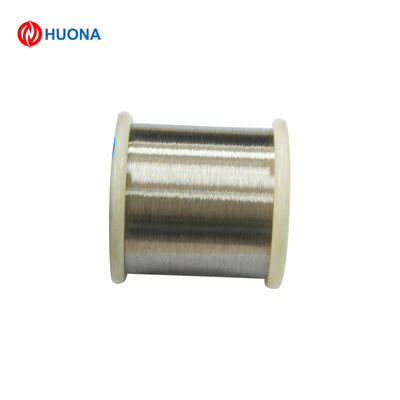

4J36 Invar Wire for Thermostatic Applications | Fe-Ni Alloy Wire with Controlled Thermal Expansion
Product Overview
4J36 alloy wire, commonly known as Invar 36 wire, is a precision Fe-Ni alloy with an extremely low coefficient of thermal expansion (CTE). It contains approximately 36% nickel and is widely used in applications requiring dimensional stability across temperature changes, such as precision instruments, aerospace components, and electronic devices.
Material Composition
-
Nickel (Ni): ~36%
-
Iron (Fe): Balance
-
Others: Trace amounts of Mn, Si, C, etc.
Thermal Expansion (20–100°C): ~1.0–1.5 × 10⁻⁶ /°C
Density: ~8.1 g/cm³
Resistivity: ~0.78 μΩ·m
Tensile Strength: ≥ 450 MPa
Magnetic Properties: Soft magnetic, stable under thermal cycling
Available Sizes
-
Diameter: 0.02 mm – 3.0 mm
-
Length: coil, spool, or cut-to-length as needed
-
Surface: Bright, smooth, oxide-free
-
Condition: Annealed or cold drawn
-
Custom dimensions accepted
Key Features
-
Extremely low thermal expansion
-
Excellent dimensional stability
-
Easy to weld and process
-
High purity and oxidation resistance
-
Vacuum compatible for sealed applications
-
Custom packaging available
Applications
-
Aerospace and satellite components
-
Bimetallic thermostats and precision instruments
-
Optical mounts and sensor elements
-
Electronic device sealing and packaging
-
Laser and infrared systems
-
Measuring tools and calibration equipment
Packaging & Shipping
-
Vacuum packaging, spools, or anti-rust film
-
Air, sea, or express delivery available
-
Lead time: 7–15 working days
