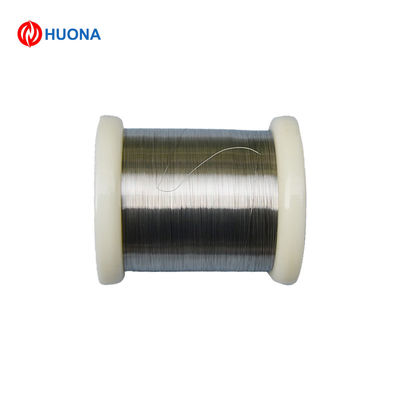

High Precision 4J32 Alloy Wire Low Expansion Fe-Ni Wire For Vacuum And Sensor Applications
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | wire |
| Minimum Order Quantity | 1KG |
| Price | negotiable |
| Packaging Details | negotiable |
| Delivery Time | a week |
| Payment Terms | T/T |
| Supply Ability | 100,000 pieces / week |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter | 0.02 Mm – 3.0 Mm | Length | In Coils, Spools, Or Cut-to-length As Required |
|---|---|---|---|
| Thermal Expansion (30–300°C) | ~5.5 × 10⁻⁶ /°C | Density | 8.2 G/cm³ |
| Tensile Strength | ≥ 450 MPa | Resistivity | 0.45 μΩ·m |
| Highlight | High Precision monel 400 wire,Low Expansion monel 400 wire,High Precision 4J32 Alloy Wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Product Overview
4J32 alloy wire is a precision nickel-iron alloy with a low and controlled coefficient of thermal expansion, specifically designed for glass-to-metal sealing applications. With approximately 32% nickel, this alloy provides excellent compatibility with hard glass and borosilicate glass, ensuring reliable hermetic sealing in electronic vacuum devices, sensors, and military-grade packages.
Material Composition
-
Nickel (Ni): ~32%
-
Iron (Fe): Balance
-
Minor elements: Manganese, Silicon, Carbon, etc.
Thermal Expansion (30–300°C): ~5.5 × 10⁻⁶ /°C
Density: ~8.2 g/cm³
Tensile Strength: ≥ 450 MPa
Resistivity: ~0.45 μΩ·m
Magnetic Properties: Soft magnetic behavior with stable performance
Available Sizes & Supply
-
Diameter: 0.02 mm – 3.0 mm
-
Length: in coils, spools, or cut-to-length as required
-
Condition: Annealed or cold drawn
-
Surface: Bright, oxide-free, smooth finish
-
Packaging: Vacuum-sealed bags, anti-rust foil, plastic spools
Key Features
-
Excellent match with glass for hermetic sealing
-
Stable low thermal expansion performance
-
High purity and clean surface for vacuum compatibility
-
Easy to weld, shape, and seal under various processes
-
Customizable size and packaging options for different applications
Applications
-
Glass-to-metal sealed relays and vacuum tubes
-
Sealed electronic packages for aerospace and defense
-
Sensor components and IR detector housings
-
Semiconductor and optoelectronic packaging
-
Medical devices and high-reliability modules
