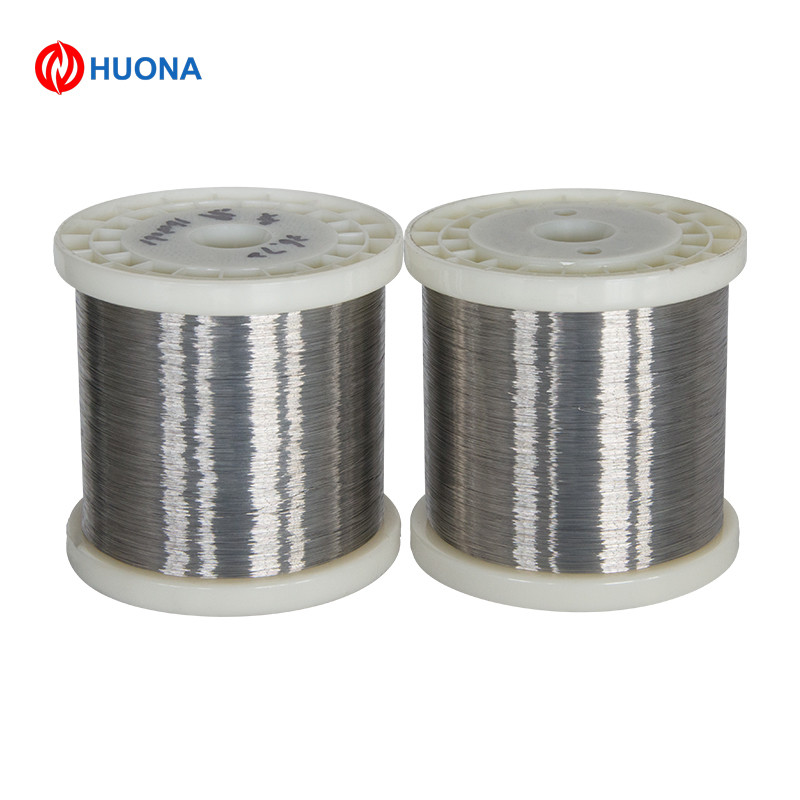

0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements

  • 0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements
Place of Origin China
Brand Name Huona
Certification ISO9001
Model Number Nicr3520
Minimum Order Quantity 1KG
Price Need to negotiate
Packaging Details Cartoon, Wooden
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100tons/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nicr3520 Wire Grade Ni35Cr20
Composition 35% Ni 20% Cr Shape Wire
Certificate ISO9001 Customization Yes
Highlight

iso9001 nichrome alloy

,

ni35cr20 nichrome alloy

,

iso9001 insulated nichrome wire
Leave a Message
Product Description

Product Description

Company Info.

Properties/Grade NiCr 35/20 NiCr 30/20 Karma Evanohm
Main Chemical
Composition (%)		 Ni
34.0-37.0
Cr
18.0-21.0
Fe
Bal.		 Ni
30.0-34.0
Cr
18.0-21.0
Fe
Bal.		 Ni
Bal.
Cr
19.0-21.5
Fe
2.0-3.0		 Ni
Bal.
Cr
19.0-21.5
Fe
-
Max Working
Temperature (ºC)		 1100 1100 300 1400
Resistivity at
20ºC (μΩ·m)		 1.04 1.04 1.33 1.33
Density (g/cm³) 7.9 7.9 8.1 8.1
Thermal Conductivity
(KJ/m·h·ºC)		 43.8 43.8 46 46
Coefficient of
Thermal Expansion (α×10⁻⁶/ºC)		 19 19 - -
Melting Point (ºC) 1390 1390 1400 1400
Elongation (%) > 20 > 20 10-20 10-20
Micrographic Structure austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic




Chemical Composition Nickel 80%, Chrome 20%
Condition Bright/Acid white/Oxidized Color
Diameter (Wire) 0.018mm~1.6mm (spool), 1.5mm-8mm (coil), 8~60mm (rod)
Nichrome Round Wire Diameter: 0.018mm~10mm
Nichrome Ribbon Width: 5~0.5mm, Thickness: 0.01-2mm
Nichrome Strip Width: 450mm~1mm, Thickness: 0.001mm~7mm
Grade Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe,
Ni30Cr20, Ni80, Ni70, Ni60, Ni40
Advantage Excellent cold plasticity due to metallurgical structure
Characteristics Stable performance;
Anti-oxidation;
Corrosion resistance;
High temperature stability;
Excellent coilforming ability;
Uniform and clean surface without spots
Usage Resistance heating elements;
Metallurgy materials;
Household appliances;
Mechanical manufacturing and other industries



0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 0
0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 1

0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 2
0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 3
0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 4

0.01-8.0mm Nicr3520 Wire Precision Resistance Wire For Heating Elements 5
