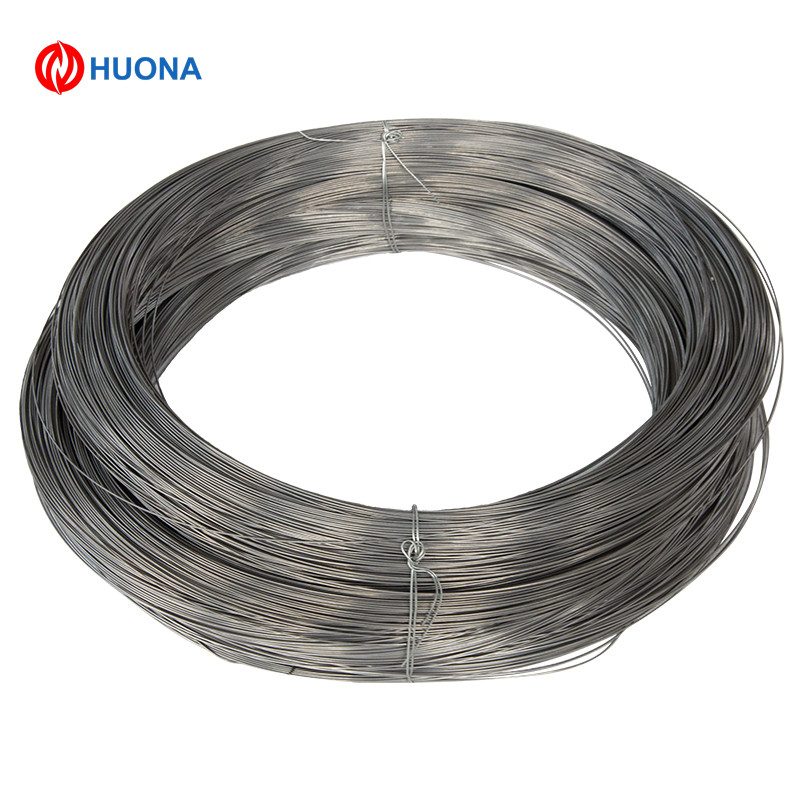

MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces

  • MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces
  • MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number MWS-650
Minimum Order Quantity 5KG
Price Bargain
Packaging Details Wooden, Cartoon
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100tons/month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nichrome Wire Grade MWS-650
Composition Nicr Usage For Bogie Hearth Furnaces
Sample Support Customization Support
Highlight

Custom electric resistance wire

,

High Resistivity electric resistance wire

,

Custom Nichrome Heating Wire
Leave a Message
Product Description




Model NO. MWS-650 Purity 80%
Product name Nicr 8020 Wire Type Wire
Powder Not Powder Chemical Composition Ni 76%
Characteristics High Resistivity,
Good Anti-Oxidation Resistance		 Range of Application Resistor, Furnaces
Electrical Resistivity 1.09 The Highest Use Temperature 1400℃
Density 8.4g/cm³ Elongation ≥20%
Hardness 180 Hv Max Working Temperature 1200℃
Transport Package Wooden Case Specification Support customization
Trademark HUONA Origin China
HS Code 7505220000 Production Capacity 100 Tons/Month

MWS-650 Nichrome Heating Wire for Bogie Hearth Furnaces
Chemical Composition and Propertes:
Propertes/Grade NiCr 80/20 NiCr 70/30 NiCr 60/15
Main Chemical  Composition(%) Ni Bal. Bal. 55.0-61.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0
Fe ≤ 1.0 ≤ 1.0 Bal.
Max Working Temperature(ºC) 1200 1250 1150
Resistivity at 20ºC(μ Ω · m) 1.09 1.18 1.12
Density(g/cm3)  8.4 8.1 8.2
Thermal Conductivity(KJ/m· h· ºC) 60.3 45.2 45.2
Coefficient of Thermal Expansion(α × 10-6/ºC) 18 17 17
Melting Point(ºC) 1400 1380 1390
Elongation(%) > 20 > 20 > 20
Micrographic Structure austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic

Propertes/Grade NiCr 35/20 NiCr 30/20 Karma Evanohm
Main Chemical
Composition(%)		 Ni 34.0-37.0 30.0-34.0 Bal Bal
Cr 18.0-21.0 18.0-21.0 19.0-21.5 19.0-21.5
Fe Bal. Bal. 2.0-3.0 -
Max Working Temperature(ºC) 1100 1100 300 1400
Resistivity at 20ºC
(μ Ω · m)		 1.04 1.04 1.33 1.33
Density(g/cm3)  7.9 7.9 8.1 8.1
Thermal Conductivity
(KJ/m· h· ºC)		 43.8 43.8 46 46
Coefficient of Thermal
Expansion(α × 10-6/ºC)		 19 19 - -
Melting Point(ºC) 1390 1390 1400 1400
Elongation(%) > 20 > 20 10-20 10-20
Micrographic Structure austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic
Chemical Composition Nickel 80%, Chrome 20%
Condition Bright/Acid white/Oxidied Color
Diameter 0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Round Wire Diameter 0.018mm~10mm
Nichrome Ribbon Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip Width 450mm~1mm, thickness 0.001m~7mm
Diameter 1.5mm-8mm packing in coil, 8~60mm in rod
Grade MWS-650, Nicr8020
Advantage The metallurgical structure of nichrome
confers them a very good plasticity when cold.
Characteristics Stable performance;  Anti-oxidation;  Corrosion resistance;
High temperature stability;  Excellent coilforming ability;
 Uniform and beautiful surface condition without spots.
Usage Resistance heating elements;Material in metallurgy,
Household appliances;Mechanical manufacturing and
 other industries.
Resistance Wires
RW30 W.Nr 1.4864 Nickel 37%, Chrome 18%, Iron 45%
RW41 UNS N07041 Nickel 50%, Chrome 19%, Cobalt 11%, Molybdenum 10%, Titanium 3%
RW45 W.Nr 2.0842 Nickel 45%, Copper 55%
RW60 W.Nr 2.4867 Nickel 60%, Chrome 16%, Iron 24%
RW60 UNS NO6004 Nickel 60%, Chrome 16%, Iron 24%
RW80 W.Nr 2.4869 Nickel 80%, Chrome 20%
RW80 UNS NO6003 Nickel 80%, Chrome 20%
RW125 W.Nr 1.4725 Iron BAL, Chrome 19%, Aluminium 3%
RW145 W.Nr 1.4767 Iron BAL, Chrome 20%, Aluminium 5%
RW155
Iron BAL, Chrome 27%, Aluminium 7%, Molybdenum 2%

MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces 0
MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces 1
MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces 2
MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces 3
MWS-650 Wire Nichrome Heating Wire For Bogie Hearth Furnaces 4
