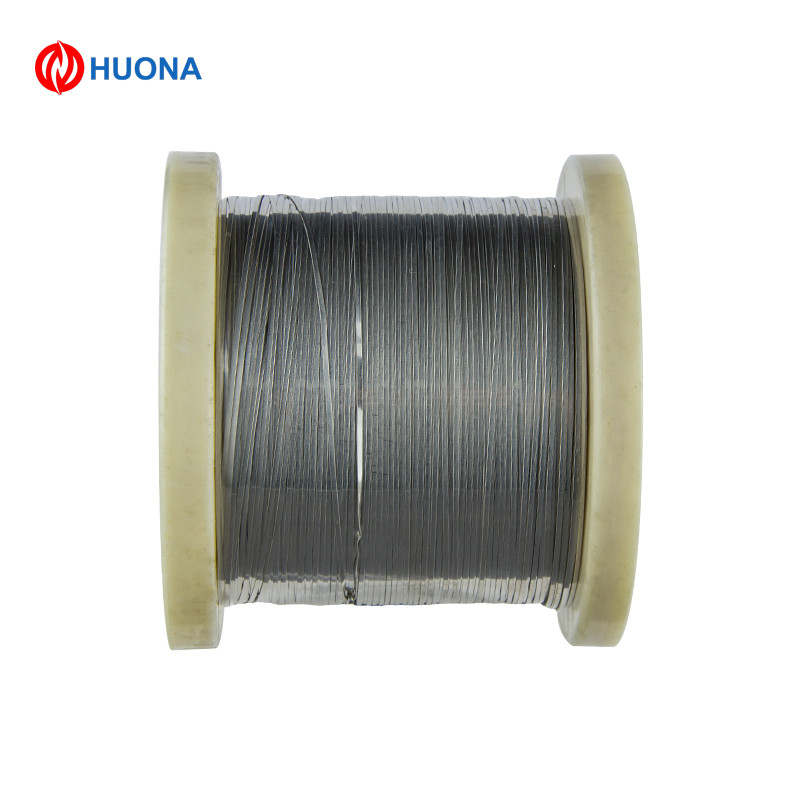

0.1x2.5mm Flat Nichrome Ni80Cr20 Ribbon Flat Wire For Sealer
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | JIS, GB, DIN, BS, ASTM, AISI |
| Model Number | NI80CR20 |
| Minimum Order Quantity | 20KG |
| Price | US$24.75-25.85 |
| Packaging Details | Wooden Cases or Cartons |
| Delivery Time | 5-21DAYS |
| Payment Terms | T/T |
| Supply Ability | 2000ton/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Ni80Cr20 | Resisivity | 1.09+/-3% |
|---|---|---|---|
| Surface | Bright | Diameter | 0.03-1.0*0.5-5.0mm |
| Transport Package | Wooden Cases Or Cartons | Purity | 80%Ni, 20%Cr |
| Type | Nickel Alloy Ribbon | The Highest Use Temperature | 1200c |
| Shape | Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil | Specification | 0.3x4.0mm |
| Production Capacity | 2000ton/Year | ||
| Highlight | Ni80Cr20 nichrome flat wire,Flat Nichrome Ribbon Wire,Ni80Cr20 Nichrome Ribbon Wire |
||
Product Description
Product Description

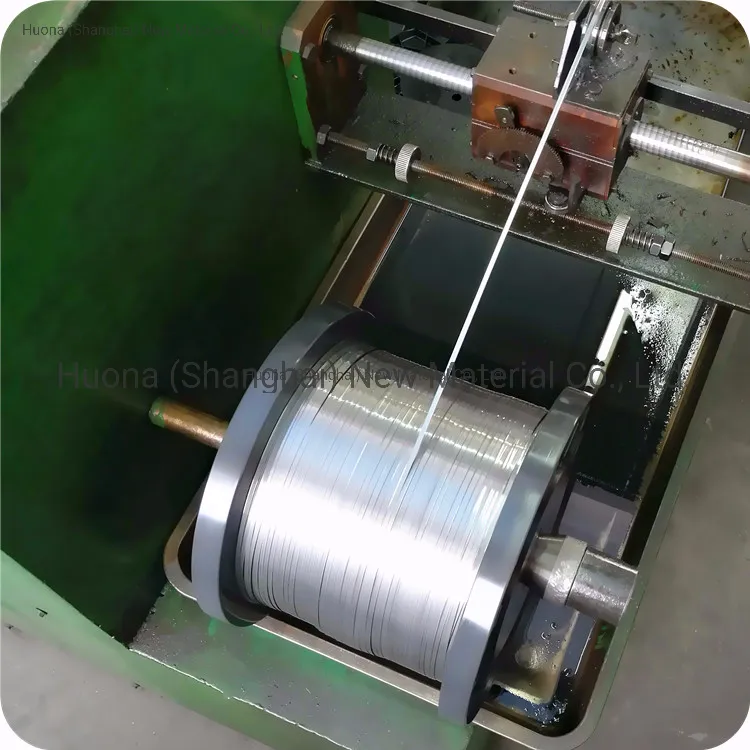

0.1x2.5mm high quality nichrome Ni80Cr20 ribbon flat wire for sealer
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Mechanical Properties of Nichrome 80 wire
|
Max Continuous Service Temperature: |
1200ºC |
|
Resisivity 20ºC: |
1.09 ohm mm2/m |
|
Density: |
8.4 g/cm3 |
|
Thermal Conductivity: |
60.3 KJ/m·h·ºC |
|
Coefficient of Thermal Expansion: |
18 α×10-6/ºC |
|
Melting Point: |
1400ºC |
|
Elongation: |
Min 20% |
|
Micrographic Structure: |
Austenite |
|
Magnetic Property: |
nonmagnetic |
Temperature Factors Of Electrical Resistivity
|
20ºC |
100ºC |
200ºC |
300ºC |
400ºC |
500ºC |
600ºC |
|
1 |
1.006 |
1.012 |
1.018 |
1.025 |
1.026 |
1.018 |
|
700ºC |
800ºC |
900ºC |
1000ºC |
1100ºC |
1200ºC |
1300ºC |
|
1.01 |
1.008 |
1.01 |
1.014 |
1.021 |
1.025 |
- |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni80Cr20W | Wire | D=0.03mm~8mm | ||
| Ni80Cr20R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| Ni80Cr20S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni80Cr20F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni80Cr20B | Bar | Dia=8~100mm | L=50~1000 | |
