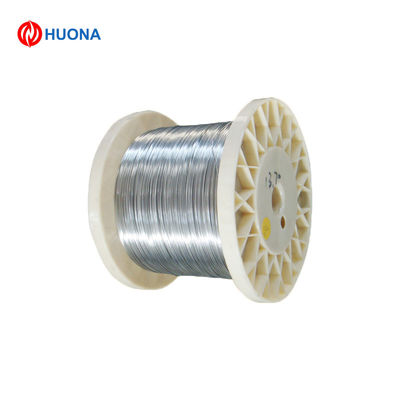

NCH(R)W1/Ni80/MWA-650 Nickel Alloy Heating Wire For Ovens ISO9001

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Nickel Alloy Heating Wire	Product Model NO.	Ni80Cr20
Type	Nickel Wire	Range Of Application	Resistor, Heater,Chemical
Trademark	Trademark	Transport Package	HUONA
Highlight	High Precision Nickel Chrome Resistance Wire , High Precision Nickel Based Welding Wire , ISO9001 Nickel Chrome Resistance Wire

Leave a Message

Product Description

Basic Info.

Attribute	Details	Attribute	Details
Model NO.	Ni80Cr20	Purity	80%
Alloy	Alloy	Type	Nickel Wire
Chemical Composition	Ni 78%	Characteristics	High Resistivity, Good Anti-Oxidation Resistance
Range of Application	Resistor, Heater, Chemical	Electrical Resistivity	1.09 Ohm·mm²/m
The Highest Use Temperature	1400°C	Density	8.4 g/cm³
Elongation	≥20%	Hardness	180 Hv
Max Working Temperature	1200°C	Transport Package	Wooden Case
Specification	0.01-8.0mm	Trademark	HUONA
Origin	Shanghai	HS Code	7505220000
Production Capacity	100 Ton/Month

NCH(R)W1/Ni80/MWA-650 Nickel Alloy Heating Wire for Ovens

Description

Chemical Composition and Propertes:
Propertes/Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15
Main Chemical Composition(%)	Ni	Bal.	Bal.	55.0-61.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0
	Fe	≤ 1.0	≤ 1.0	Bal.
Max Working Temperature(ºC)		1200	1250	1150
Resistivity at 20ºC(μ Ω · m)		1.09	1.18	1.12
Density(g/cm3)		8.4	8.1	8.2
Thermal Conductivity(KJ/m· h· ºC)		60.3	45.2	45.2
Coefficient of Thermal Expansion(α × 10-6/ºC)		18	17	17
Melting Point(ºC)		1400	1380	1390
Elongation(%)		> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic

Propertes/Grade		NiCr 35/20	NiCr 30/20	Karma	Evanohm
Main Chemical Composition(%)	Ni	34.0-37.0	30.0-34.0	Bal	Bal
	Cr	18.0-21.0	18.0-21.0	19.0-21.5	19.0-21.5
	Fe	Bal.	Bal.	2.0-3.0	-
Max Working Temperature(ºC)		1100	1100	300	1400
Resistivity at 20ºC (μ Ω · m)		1.04	1.04	1.33	1.33
Density(g/cm3)		7.9	7.9	8.1	8.1
Thermal Conductivity (KJ/m· h· ºC)		43.8	43.8	46	46
Coefficient of Thermal Expansion(α × 10-6/ºC)		19	19	-	-
Melting Point(ºC)		1390	1390	1400	1400
Elongation(%)		> 20	> 20	10-20	10-20
Micrographic Structure		austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

Chemical Composition	Nickel 80%, Chrome 20%
Condition	Bright/Acid white/Oxidied Color

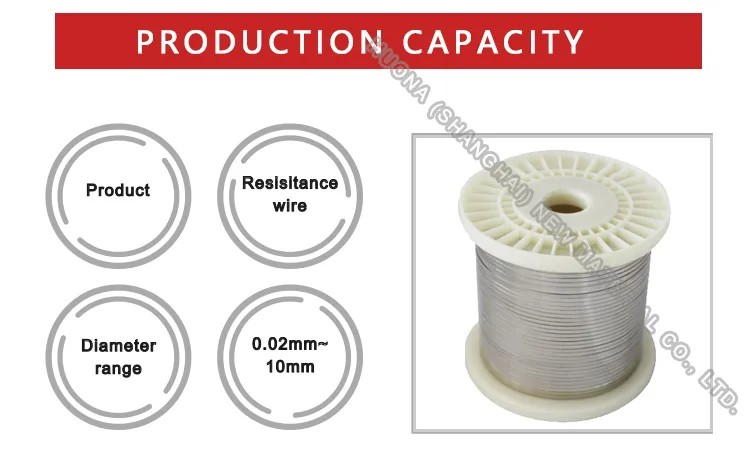

Diameter	0.018mm~1.6mm in spool, 1.5mm-8mm packing in coil, 8~60mm in rod
Nichrome Round Wire	Diameter 0.018mm~10mm
Nichrome Ribbon	Width 5~0.5mm, thickness 0.01-2mm
Nichrome Strip	Width 450mm~1mm, thickness 0.001m~7mm
Diameter	1.5mm-8mm packing in coil, 8~60mm in rod
Grade	Ni80Cr20, Ni70/30, Ni60Cr15, Ni60Cr23, Ni35Cr20Fe, Ni30Cr20 Ni80, Ni70,Ni60, Ni40,
Advantage	The metallurgical structure of nichrome confers them a very good plasticity when cold.

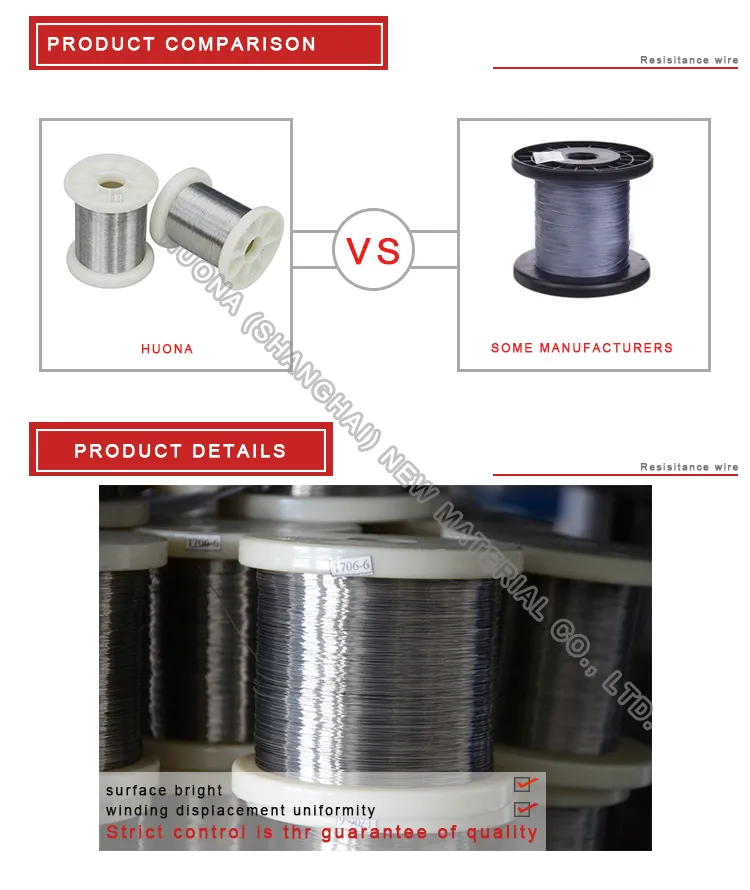

Characteristics	Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coilforming ability; Uniform and beautiful surface condition without spots.
Usage	Resistance heating elements;Material in metallurgy, Household appliances;Mechanical manufacturing and other industries.

Resistance Wires
RW30	W.Nr 1.4864	Nickel 37%, Chrome 18%, Iron 45%
RW41	UNS N07041	Nickel 50%, Chrome 19%, Cobalt 11%, Molybdenum 10%, Titanium 3%
RW45	W.Nr 2.0842	Nickel 45%, Copper 55%
RW60	W.Nr 2.4867	Nickel 60%, Chrome 16%, Iron 24%
RW60	UNS NO6004	Nickel 60%, Chrome 16%, Iron 24%
RW80	W.Nr 2.4869	Nickel 80%, Chrome 20%
RW80	UNS NO6003	Nickel 80%, Chrome 20%
RW125	W.Nr 1.4725	Iron BAL, Chrome 19%, Aluminium 3%
RW145	W.Nr 1.4767	Iron BAL, Chrome 20%, Aluminium 5%
RW155		Iron BAL, Chrome 27%, Aluminium 7%, Molybdenum 2%
