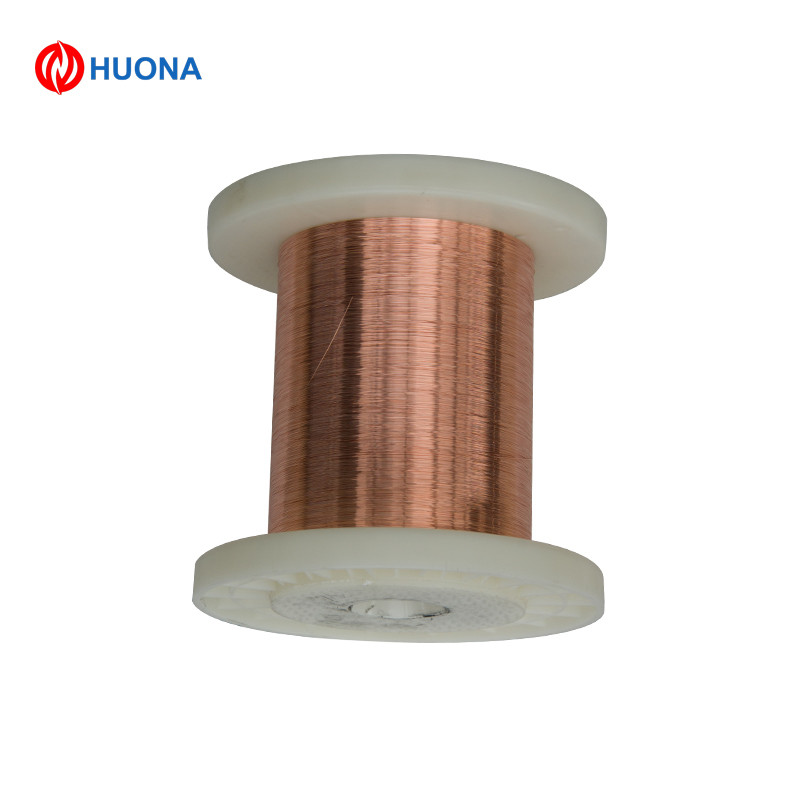

Low Resistance Copper Alloys Wire Cumn3 Bright For Thermal Overload Relay

  • Low Resistance Copper Alloys Wire Cumn3 Bright For Thermal Overload Relay
  • Low Resistance Copper Alloys Wire Cumn3 Bright For Thermal Overload Relay
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number CuMn3
Minimum Order Quantity 1KG
Price $20/KG-$23/ KG
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CuMn Alloy Product Grade CuMn3
Product Surface Bright Material CuMn
Sample Support Custom Service ODM/OEM
Highlight

Low Resistance copper alloys wire

,

Low Resistance nickel copper wire

,

Bright copper alloys wire
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.

Attribute Details Attribute Details
Model NO. CuMn3 Surface Bright
Product name CuMn Wire Density 8.9 g/cm³
Type Wire Application Water Heater,
Air Condition/Refrigerator,
Oil Cooler Pipe, Water Tube
Alloy Cumn Alloy Standard ASTM
Color Red Shape Coil
Material Red Copper Transport Package Wooden Case
Specification 0.05mm~1.5mm Trademark HUONA
Origin Shanghai, China HS Code 74082900
Production Capacity 2000 tons/Year

Product Description

1. Description

Cupronickel, also can be called copper nickel alloy, is an alloy of copper, nickel and strengthening impurities, such as iron and manganese.


CuMn3
Chemical Content(%)
Mn Ni Cu
3.0
Bal.
Mechanical Properties
Max Continuous Service Temp 200 ºC
Resistivity at 20ºC 0.12 ± 10% ohm*mm2/m
Density 8.9 g/cm3
Temperature Coefficient of Resistance < 38 ×10-6/ºC
EMF VS Cu (0~100ºC) -
Melting Point 1050 ºC
Tensile Strength Min 290 Mpa
Elongation Min 25%
Micrographic Structure Austenite
Magnetic Property Non.



2. Specification

Wire: Diameter: 0.04mm-8.0mm

Strip: Thickness: 0.01mm-3.0mm
Width: 0.5mm-200mm


3.Usage

It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay,
low-voltage circuit breaker, and so on.

4.Features

It has nice corrosion resistance, good malleability and solderability.


5. Packing detail

1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet

6. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
