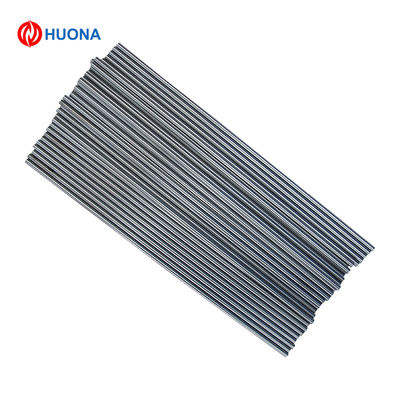

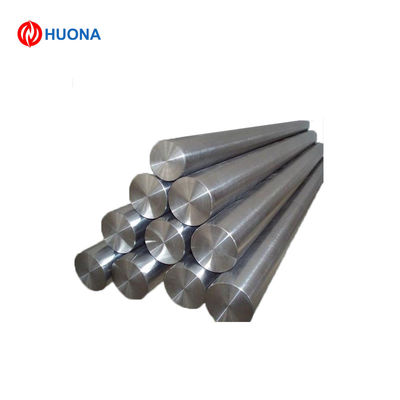

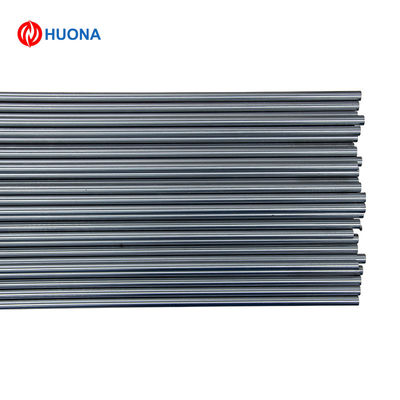

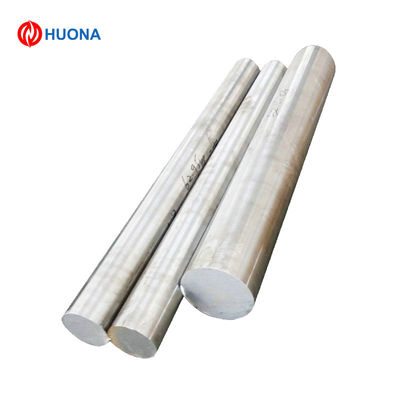

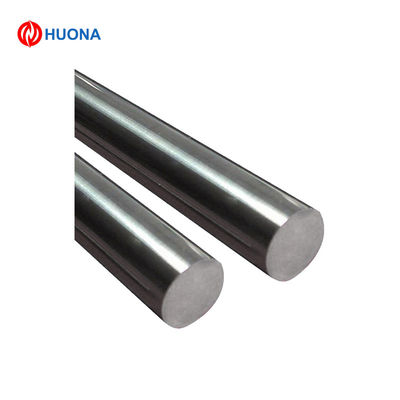

1j22 Soft Magnetic Alloy Precision Rod Low Expansion Alloy With Co/Fe Material RoHS
| Place of Origin | Shanghai |
|---|---|
| Brand Name | Huona |
| Certification | ISO9001 |
| Model Number | 1j22 |
| Minimum Order Quantity | 5 |
| Price | US$30.00-30.50 |
| Packaging Details | in Coil, Carton, Wooden Case |
| Delivery Time | 5-21days |
| Payment Terms | L/C,Western Union,T/T,MoneyGram |
| Supply Ability | 5000 Ton/Year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Co,Fe | Thermal Expansion Coefficient (20~100oc) | 8.5*10-6 /Oc |
|---|---|---|---|
| Usage | Electro-Magnet Pole | Transport Package | In Coil, Carton, Wooden Case |
| Specification | RoHS, SGS | Magnetic Induction Strength(B400) | 1.6 |
| Highlight | 1j22 Soft Magnetic Alloy,1j22 Low Expansion Alloy,RoHS Low Expansion Alloy |
||
Product Description
Basic Info.
Model NO.
1J22
Material
Co,Fe
Carbon Content
Low Carbon
Main Chemical Content
Co,Fe
Density
8.2 g/cm3
Coercive Force
128A/M
Model No.
1j22
Status
Bright
Curie Point
980oc
Magnetic Induction Strength(B400)
1.6
Size
Diameter:3-600mm.
Thermal Expansion Coefficient (20~100oc)
8.5*10-6 /Oc
Saturation Magnetic Stricture Coefficie
60~100*10-6
Usage
Electro-Magnet Pole
Transport Package
in Coil, Carton, Wooden Case
Specification
RoHS, SGS
Trademark
HUONA
Origin
Shanghai
HS Code
75062000
Production Capacity
5000 Ton/Year
Product Description
1. Description
Soft Magnetic Alloy is one kind of alloy with high permeability and low coercivity in weak magnetic field. This kind of alloy is widely used in radio electronics industry, precision instruments, remote control and automatic control system, generally, it is mainly used in energy conversion and information processing.
Chemical Content(%)
Mechanical Properties
2.Usage
It is used in electro-magnet pole, end welded pipe in magnetron, earphone diaphragm, torue motor rotor transducer ferritecore.
3.Features
Ithasahighsaturationmagnetic inductionandhigh-magnetostrictioncoefficient.
4. Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
Soft Magnetic Alloy is one kind of alloy with high permeability and low coercivity in weak magnetic field. This kind of alloy is widely used in radio electronics industry, precision instruments, remote control and automatic control system, generally, it is mainly used in energy conversion and information processing.
Chemical Content(%)
Mn |
Ni |
V |
C |
Si |
P |
S |
Fe |
Co |
0.21 |
0.2 |
1.3 |
0.01 |
0.19 |
0.004 |
0.003 |
Bal |
50.6 |
Mechanical Properties
Density |
8.2 g/cm3 |
Thermal Expansion Coefficient (20~100ºC) |
8.5*10-6 /ºC |
Curie Point |
980ºC |
Volume Resistivity (20ºC) |
40 μΩ.cm |
Saturation Magnetic Stricture Coefficient |
60~100*10-6 |
Coercive Force |
128A/m |
Magnetic induction strength in different magnetic field |
|
B400 |
1.6 |
B800 |
1.8 |
B1600 |
2.0 |
B2400 |
2.1 |
B4000 |
2.15 |
B8000 |
2.2 |
2.Usage
It is used in electro-magnet pole, end welded pipe in magnetron, earphone diaphragm, torue motor rotor transducer ferritecore.
3.Features
Ithasahighsaturationmagnetic inductionandhigh-magnetostrictioncoefficient.
4. Packing detail
1). Coil (plastic spool) + compressed ply-wooden case + pallet
2). Coil (plastic spool) + carton + pallet
5. Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Fast delivery;
