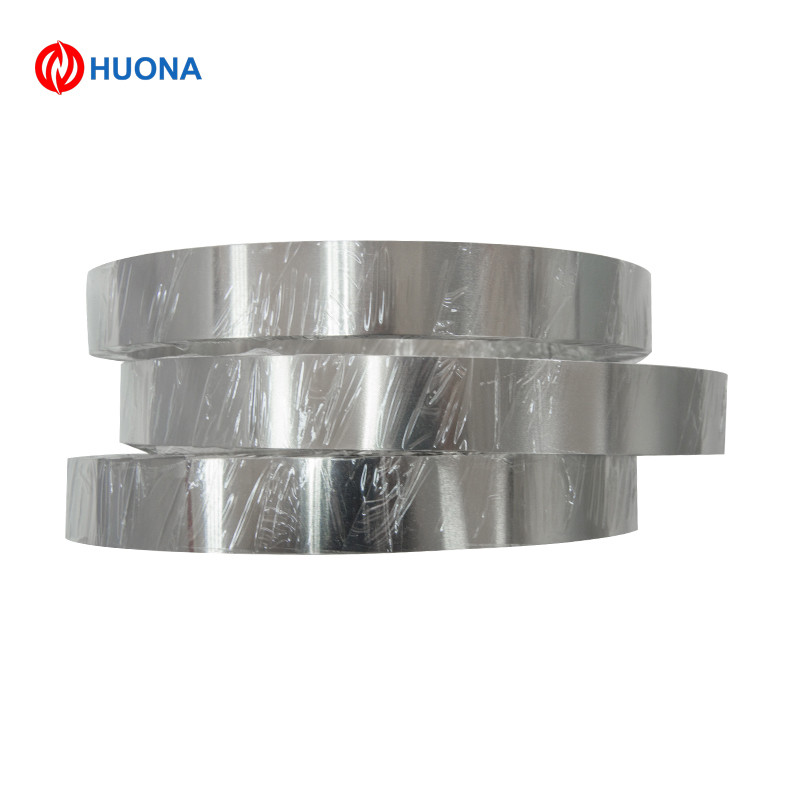

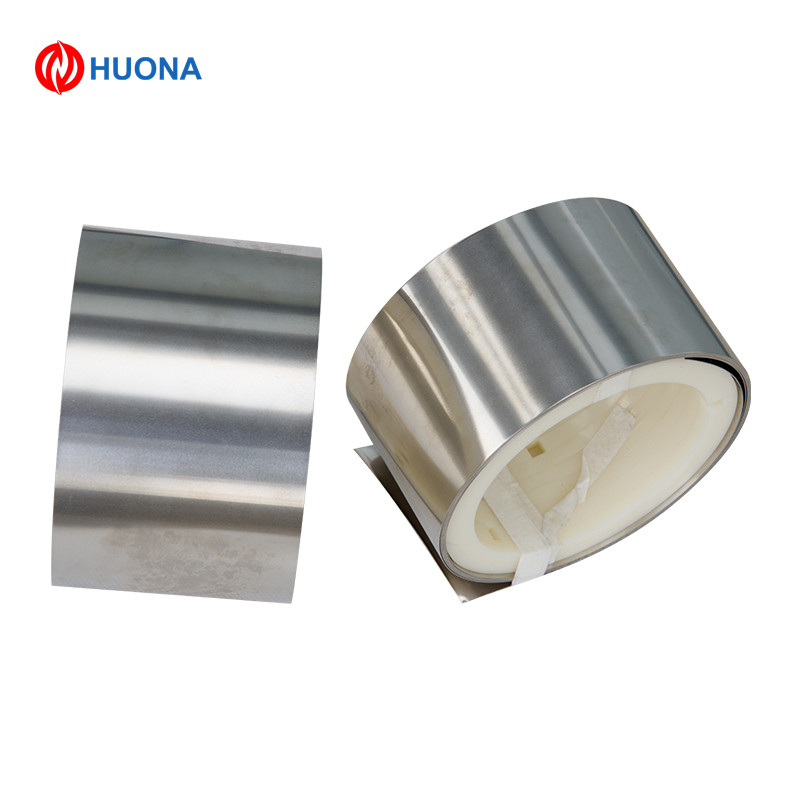

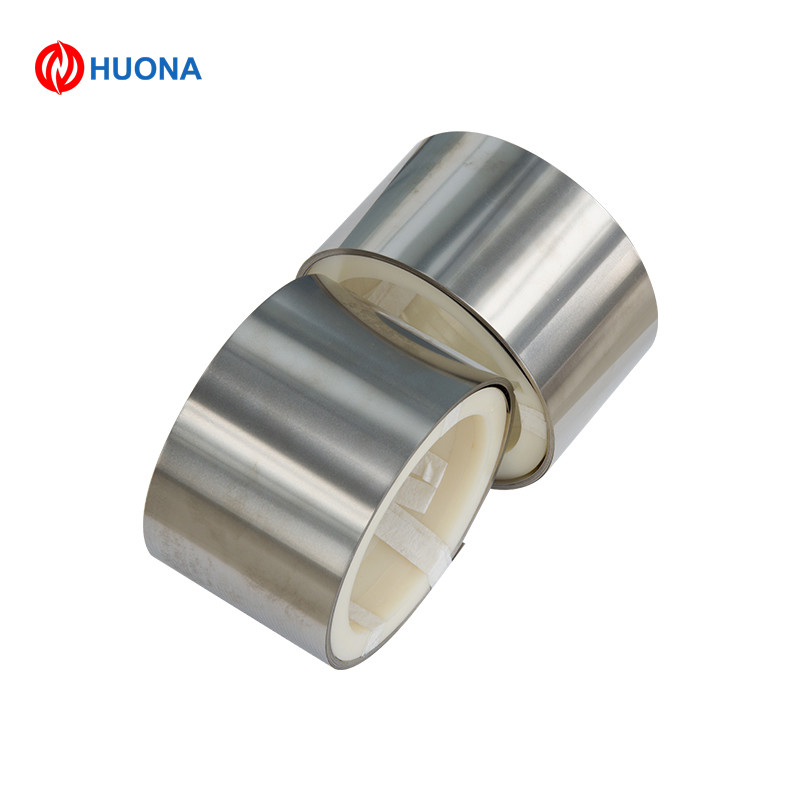

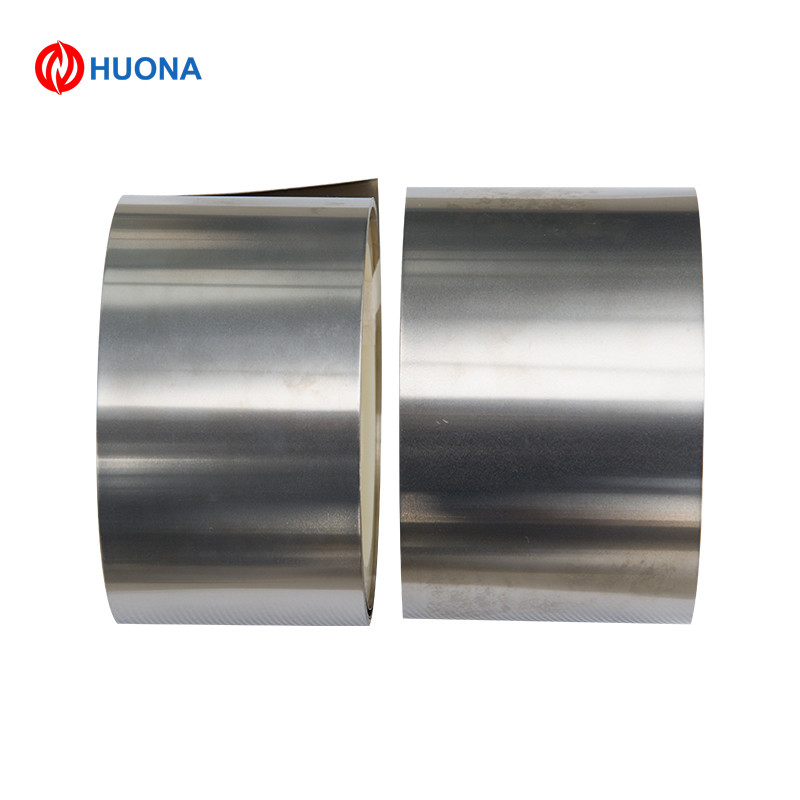

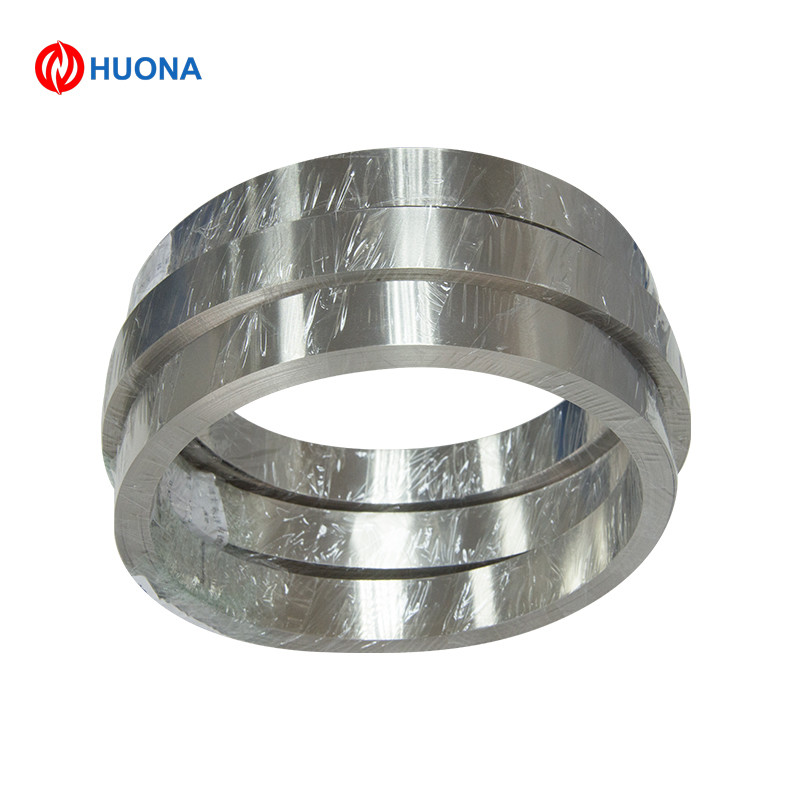

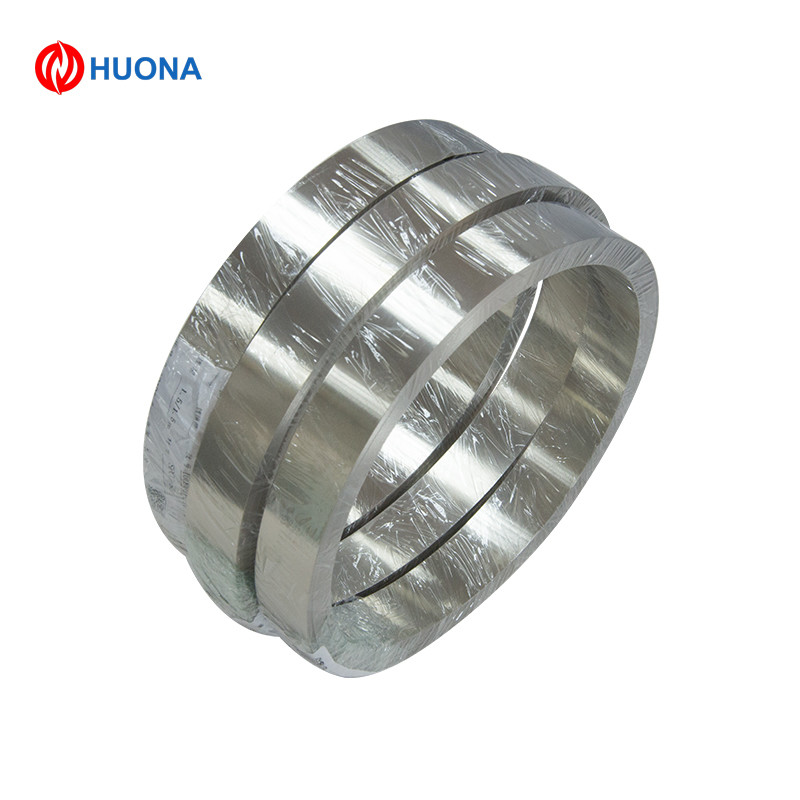

Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards

  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
  • Bright 1-3mm Monel 400 Alloy Product Strip Highest Standards
Place of Origin Shanghai
Brand Name Huona
Certification ISO 9001
Model Number 4J36
Minimum Order Quantity 100kg
Price Negotiable
Packaging Details coil
Delivery Time 15 workdays
Payment Terms L/C,T/T,Western Union,MoneyGram
Supply Ability 10000kg/week

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Density 8.1g/cm3 Material FeNi
Surface Bright &smooth Highlight 4J36 Invar Alloy Strip Strip, FeNi36 Invar Alloy Strip, Low Expansion Alloys Strip
Curie PointTc/ ℃ 230 Electrical Resistivity At 20℃ 0.78
Highlight

4J36 Low Expansion Alloy

,

4J36 invar steel alloy

,

High Precision Low Expansion Alloy
Leave a Message
Product Description

4J36 Low Expansion Invar Alloy Strip DIN17745 FeNi36 0.4 X 211mm



Material: FeNi Chemical: Fe64% Ni36%
Density: 8.1g/cm3 Surface: Bright &smooth
Highlight:

4J36 Invar Alloy Strip Strip

,

FeNi36 Invar Alloy Strip

,

Low Expansion Alloys Strip




4J36 0.4x211mm strip invor alloy DIN17745 FeNi36 strip

HUONA-Alloy-4J36 (Expansion alloy)

(Common Name: Invar, FeNi36, Invar Standard, Vacodil36)

HUONA-Alloy-4J36(Invar), also known generically as FeNi36 (64FeNi in the US), is a nickel–iron alloy notable for its uniquely low coefficient of thermal expansion (CTE or α).

The name Invar comes from the word invariable, referring to its relative lack of expansion or contraction with temperature changes.

It was invented in 1896 by Swiss physicist Charles Édouard Guillaume. He received the Nobel Prize in Physics in 1920 for this discovery, which enabled improvements in scientific instruments.

HUONA-Alloy-4J36 (Invar) is used where high dimensional stability is required, such as precision instruments, clocks, seismic creep gauges, television shadow-mask frames, valves in motors, and antimagnetic watches. In land surveying, when first-order (high-precision) elevation leveling is to be performed, the Level staff (leveling rod) used is made of Invar, instead of wood, fiberglass, or other metals. Invar struts were used in some pistons to limit their thermal expansion inside their cylinders.



Normal composition%

Ni 35~37.0 Fe Bal. Co - Si ≤0.3
Mo - Cu - Cr - Mn 0.2~0.6
C ≤0.05 P ≤0.02 S ≤0.02

Typical Physical properties

Density (g/cm3) 8.1
Electrical resistivity at 20℃(Ωmm2/m) 0.78
Temperature factor of resistivity(20℃~200℃)X10-6/℃ 3.7~3.9
Thermal conductivity, λ/ W/(m*℃) 11
Curie pointTc/ ℃ 230
Elastic Modulus, E/ Gpa 144



Coefficient of expansion

θ/℃ α1/10-6℃-1 θ/℃ α1/10-6℃-1
20~-60 1.8 20~250 3.6
20~-40 1.8 20~300 5.2
20~-20 1.6 20~350 6.5
20~-0 1.6 20~400 7.8
20~50 1.1 20~450 8.9
20~100 1.4 20~500 9.7
20~150 1.9 20~550 10.4
20~200 2.5 20~600 11.0



Typical Mechanical properties

Tensile Strength Elongation
Mpa %
641 14
689 9
731 8



Temperature factor of resistivity

Temperature range ℃ 20~50 20~100 20~200 20~300 20~400
aR/ 103*℃ 1.8 1.7 1.4 1.2 1.0



The heat treatment process

Annealing for stress relief Heated to 530~550℃ and hold 1~2 h. Cold down
annealing In order to eliminate hardening, which be bring out in cold-rolled, cold drawing process. Annealing needs heated to 830~880℃in vacuum, hold 30 min.
The stabilization process
  1. In protective media and heated to 830 ℃, hold 20min. ~ 1h, quench
  2. Due to the stress generated by quenching, heated to 315℃,hold 1~4h.
Precautions
  1. Cannot be hardened by heat treatment
  2. Surface treatment can be sandblasting, polishing or pickling.
  3. Alloy can be used 25% hydrochloric acid pickling solution at 70 ℃ to clear oxidized surface



Style of supply

Alloys Name Type Dimension
HUONA-Alloy-4J36 Wire D=0.1~8mm
HUONA-Alloy-4J36 Strip W= 5~250mm T= 0.1mm
HUONA-Alloy-4J36 Foil W= 10~100mm T= 0.01~0.1
HUONA-Alloy-4J36 Bar Dia=8~100mm L=50~1000
