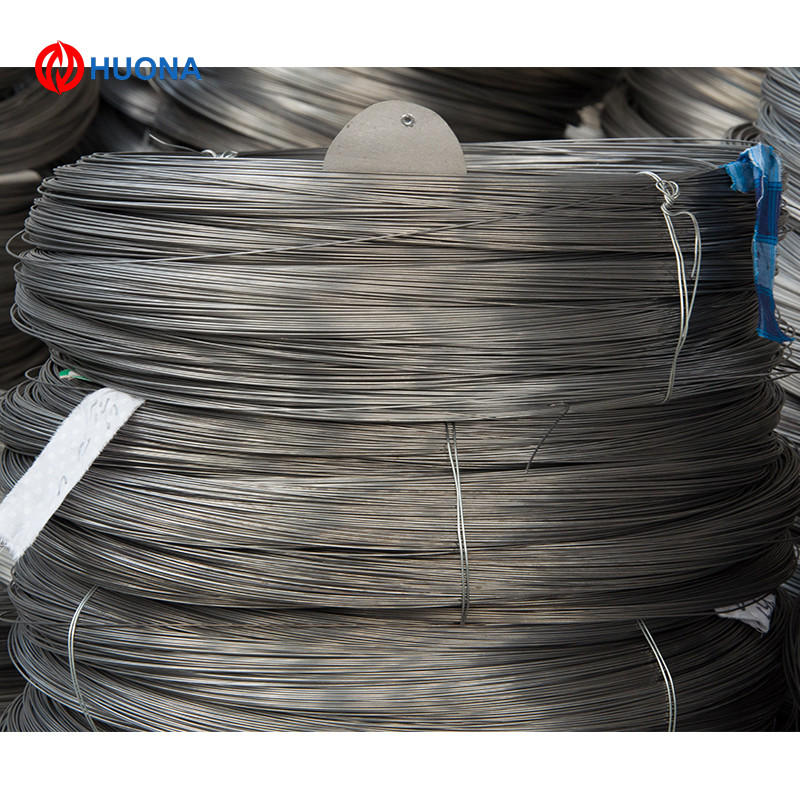

High Quality Nichrome Wire Heating Electrical Resistance Wire Nickel Chromium

  • High Quality Nichrome Wire Heating Electrical Resistance Wire Nickel Chromium
  • High Quality Nichrome Wire Heating Electrical Resistance Wire Nickel Chromium
Place of Origin China
Brand Name HUONA
Certification ISO9001, RoHS
Model Number NiCr8020
Minimum Order Quantity 1KG
Price $28/KG-$32/ KG
Packaging Details Spool, Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Ton/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nichrome Wire Product Grade Ni80Cr20
Quality High Quality Sample We Can Provide Samples
Custom Service OEM/ODM Factory Yes
Highlight

oem nichrome alloy

,

ni80cr20 nichrome alloy

,

oem Electrical Resistance Wire
Leave a Message
Product Description

Product Description

Company Info.

Basic Info.


Attribute Details Attribute Details
Model NO. Ni80Cr20 Purity 80%
Alloy Alloy Type Nichrome Wire/Foil*
Chemical Composition Ni 80%, Cr 20% Product Name Nichrome Foil
Characteristics High Resistivity,
Good Oxidation Resistance		 The Highest
Use Temperature		 1200°C
Density 8.4 g/cm³ Resistivity 1.09 μΩ·m*
Elongation >20% Sample Support samples
Small Order Accepted Yes Transport Package

Wooden Cases

 or Cartons
Specification Different sizes Trademark HUONA
Origin China HS Code 7223000000
Production Capacity 100 Tons/Month

Competitive Price From Manufacturer Nichrome Wire

NICr80/20: Chromel A, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Alloy A, MWS-650, Stablohm 650
NiCr70/30: Chromel 70/30, N7, Hytemco, HAI-NiCr 70, Balco, Tophet 30,
Resistohm 70, Cronix 70, Stablohm 710
NiCr60/15:Chromel C, N6, HAI-NiCr 60, Tophet C, Resistohm 60, Cronifer II,
Electroloy, Nichrome, Alloy C, MWS-675, Stablohm 675

Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance
and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life
compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces
and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters,
plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.

Normal composition%

C		 P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -


Typical Mechanical properties(1.0mm)

Yield strength		 Tensile Strength Elongation
Mpa Mpa %
420 810 30


Typical Physical properties

Density (g/cm3)		 8.4
Electrical resistivity at 20ºC(mm2/m) 1.09
Conductivity coefficient at 20ºC (WmK) 15

Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC 18


Specific heat capacity
Temperature 20ºC
J/gK 0.46

Melting point (ºC) 1400
Max continuous operating temperature in air (ºC) 1200
Magnetic properties non-magnetic

Temperature Factors Of Electrical Resistivity
20ºC 100ºC 200ºC 300ºC 400ºC 600ºC
1 1.006 1.012 1.018 1.025 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 -

Style of supply
Alloys Name Type Dimension
Ni80Cr20W Wire D=0.03mm~8mm
Ni80Cr20R Ribbon W=0.4~40 T=0.03~2.9mm
Ni80Cr20S Strip W=8~250mm T=0.1~3.0
Ni80Cr20F Foil W=6~120mm T=0.003~0.1
Ni80Cr20B Bar Dia=8~100mm L=50~1000





High Quality Nichrome Wire Heating Electrical Resistance Wire Nickel Chromium 0High Quality Nichrome Wire Heating Electrical Resistance Wire Nickel Chromium 1
