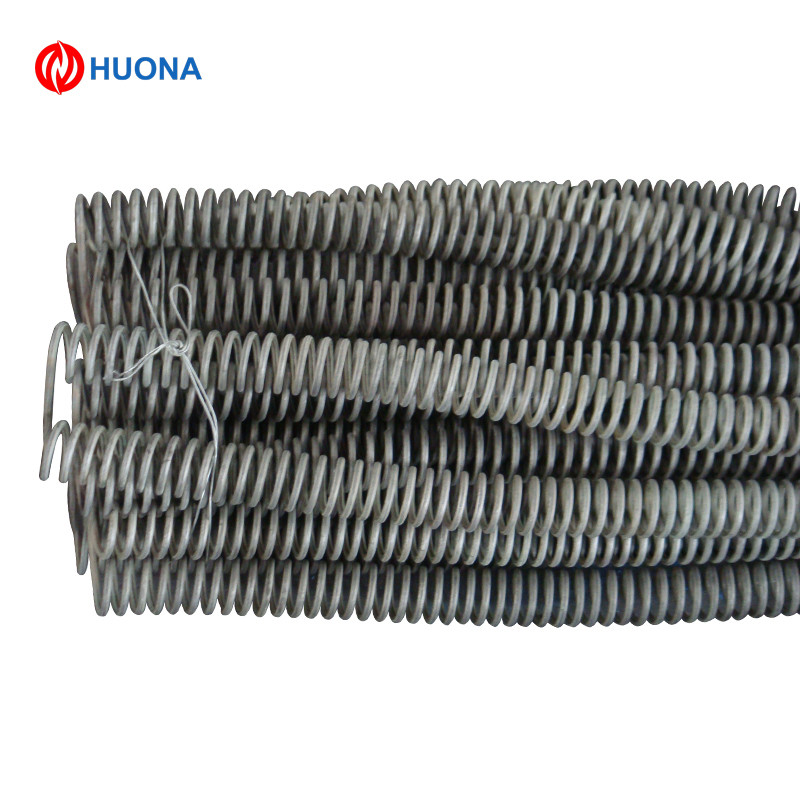

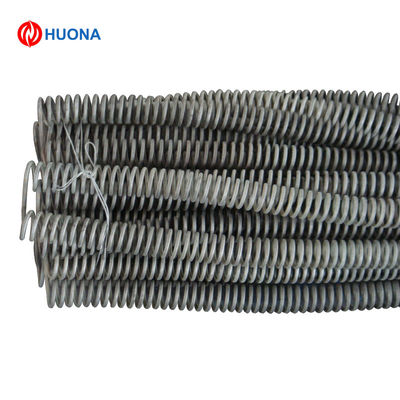

NiCr Spring Nichrome Spring Electric Heating Elements For Industry Furnace

  • NiCr Spring Nichrome Spring Electric Heating Elements For Industry Furnace
Place of Origin CHINA
Brand Name HUONA
Certification ISO9001
Model Number NiCr
Minimum Order Quantity 5KG
Price Negotiate
Packaging Details Carton, Wooden Case
Delivery Time Around a week
Payment Terms T/T
Supply Ability 100 Tons/Month

Contact me for free samples and coupons.

WhatsAPP:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Nichrome Heating Elements Product Shape Spring
Material Nichrome Customization Available
Sample Service Available Product Usage Electronics, Industrial, Medical, Chemical
MOQ 5KG Packaging Carton/ Wooden
Highlight

NiCr Spring For Furnace

,

Nichrome Spring

,

Electric Heating Elements
Leave a Message
Product Description

Product Description


Basic Info.

 Model NO.   NICR Purity   80%Ni
 Alloy   Nicr alloy Type   Sping
 Powder   Not Powder The Highest Use Temperature   1200℃
 Resisivity   1.09Ω·mm²/M Density   8.4g/cm3
 Surface   Bright Sample   Support
 Shape   Spring OEM   Yes
 Transport   Package   Wooden or       Carton Specification   customized
 Trademark   Huona Origin   China
 HS Code   7505220000 Production Capacity   2000Tons/Year

Product Description

NiCr Nichrome Fecral Alloy Alchrome Electric Heating Elements for Industry Furnace
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance

and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life

compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors

(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies,

soldering irons, metal sheathed tubular elements and cartridge elements.

Mechanical Properties of Nichrome 80 wire

Max Continuous Service Temperature: 1200ºC
Resisivity 20ºC: 1.09 ohm mm2/m
Density: 8.4 g/cm3
Thermal Conductivity: 60.3 KJ/m·h·ºC
Coefficient of Thermal Expansion: 18 α×10-6/ºC
Melting Point: 1400ºC
Elongation: Min 20%
Micrographic Structure: Austenite
Magnetic Property: nonmagnetic


Temperature Factors Of Electrical Resistivity

20ºC 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC
1 1.006 1.012 1.018 1.025 1.026 1.018
700ºC 800ºC 900ºC 1000ºC 1100ºC 1200ºC 1300ºC
1.01 1.008 1.01 1.014 1.021 1.025 -

Style of supply
Alloys Name Type Dimension
Ni80Cr20W Wire D=0.03mm~8mm
Ni80Cr20R Ribbon W=0.4~40 T=0.03~2.9mm
Ni80Cr20S Strip W=8~250mm T=0.1~3.0
Ni80Cr20F Foil W=6~120mm T=0.003~0.1
Ni80Cr20B Bar Dia=8~100mm L=50~1000
