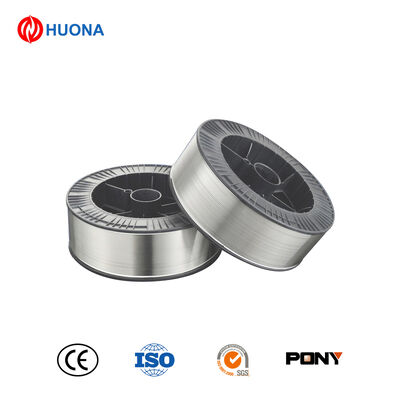

CuNi10 Thermal Spray Wire | 90/10 Copper-Nickel Spray Wire for Seawater Corrosion Protection
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 10–25 days depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | 5,000 – 10,000 kg per month (adjustable based on order) |
Product Details
| Product | CuNi10 Thermal Spray Wire | Alloy | Copper-Nickel 90/10 |
|---|---|---|---|
| Diameter | 1.6 Mm / 2.0 Mm / 2.5 Mm / 3.0 Mm (customizable) | Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) | Melting Range | Approx. 1100 – 1140°C |
| Surface Finish | Bright / Copper-coated Optional | Packing | Spool / Coil / Drum |
| Highlight | CuNi10 thermal spray wire,90/10 copper-nickel spray wire,seawater corrosion protection wire |
||
Product Description
CuNi10 Thermal Spray Wire | 90/10 Copper-Nickel Spray Wire
CuNi10 thermal spray wire is a copper-nickel alloy containing approximately 10% nickel and balance copper (90/10 Cu-Ni). Designed for arc spray and flame spray processes, it forms dense, corrosion-resistant coatings with excellent adhesion and long service life.
Key Features
- Excellent resistance to seawater corrosion and erosion-corrosion
- Good resistance to biofouling in marine environments
- Stable coating performance with good adhesion
- Suitable for arc spray and flame spray processes
- Good thermal conductivity and uniform coating structure
- Stable wire feeding and consistent coating quality
Typical Chemical Composition (Approx.)
| Element | Cu | Ni | Fe | Mn | Others |
|---|---|---|---|---|---|
| wt.% | Balance | 9.0 - 11.0 | ≤ 1.5 | ≤ 1.0 | ≤ 0.5 |
Typical Specifications
| Item | Specification |
|---|---|
| Product | CuNi10 Thermal Spray Wire |
| Alloy | Copper-Nickel 90/10 |
| Diameter | 1.6 mm / 2.0 mm / 2.5 mm / 3.0 mm (customizable) |
| Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 - 2000 μm (customizable) |
| Melting Range | Approx. 1100 - 1140°C |
| Surface Finish | Bright / copper-coated optional |
| Packing | Spool / Coil / Drum |
| MOQ | Negotiable |
Applications
- Marine shafts and seawater pump components
- Condenser and heat exchanger surfaces
- Offshore equipment and seawater pipelines
- Corrosion protection coatings
- Surface rebuilding and dimensional restoration
Advantages
- Excellent seawater corrosion resistance
- Long service life in marine environments
- Stable spraying performance and coating adhesion
- Customizable diameter and packaging
- Reliable quality with stable supply
Supply & Delivery
- Supply Capacity: 5,000 - 10,000 kg per month (adjustable based on order)
- Lead Time: 10-25 days depending on specifications and quantity
- Packing: Standard export packing in cartons or wooden crates; custom packaging available upon request
Please advise your spraying process (arc or flame), wire diameter, coating thickness and service environment (seawater / corrosion / erosion). We will recommend the suitable CuNi10 thermal spray wire for your project.
