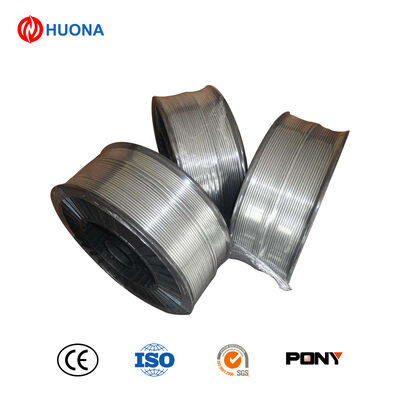

CuAl11Fe3 Thermal Spray Wire for Heavy-Duty Wear Protection with High-Aluminum Bronze (11% Al + 3% Fe) for Arc and Flame Spray Processes
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 10–25 days depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | 5,000 – 10,000 kg per month (adjustable based on order) |
Product Details
| Product | CuAl11Fe3 Thermal Spray Wire | Alloy | High-Aluminum Bronze (11% Al + 3% Fe) |
|---|---|---|---|
| Diameter | 1.6 Mm / 2.0 Mm / 2.5 Mm / 3.0 Mm (customizable) | Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) | Melting Range | Approx. 1050 – 1080°C |
| Surface Finish | Bright / Copper-coated Optional | Packing | Spool / Coil / Drum |
| Highlight | CuAl11Fe3 thermal spray wire,high-aluminum bronze spray wire,wear-resistant thermal spray wire |
||
Product Description
Product Description
CuAl11Fe3 thermal spray wire is a high-aluminum bronze alloy containing approximately 11% aluminum and 3% iron.
It is designed for arc spray and flame spray processes, forming high-hardness, wear-resistant and erosion-resistant coatings with strong adhesion and long service life.
Compared with standard aluminum bronze (CuAl7 / CuAl8 / CuAl10), CuAl11Fe3 provides higher hardness, better abrasion resistance and improved erosion resistance, making it suitable for heavy-duty industrial and mining applications.
Key Features
-
High-aluminum bronze alloy with Fe strengthening
-
Excellent wear and erosion resistance
-
Higher hardness and load-bearing capacity
-
Strong adhesion and dense coating structure
-
Suitable for arc spray and flame spray
-
Stable wire feeding and consistent coating quality
Typical Chemical Composition (Approx.)
| Element | Cu | Al | Fe | Others |
|---|---|---|---|---|
| wt.% | Balance | 10.5 – 11.5 | 2.5 – 3.5 | ≤ 0.5 |
Typical Specifications
| Item | Specification |
|---|---|
| Product | CuAl11Fe3 Thermal Spray Wire |
| Alloy | High-Aluminum Bronze (11% Al + 3% Fe) |
| Diameter | 1.6 mm / 2.0 mm / 2.5 mm / 3.0 mm (customizable) |
| Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) |
| Melting Range | Approx. 1050 – 1080°C |
| Surface Finish | Bright / copper-coated optional |
| Packing | Spool / Coil / Drum |
| MOQ | Negotiable |
Applications
-
Pump shafts and sleeves
-
Valves and seats
-
Mining and heavy machinery components
-
Sliding and friction surfaces
-
Surface rebuilding and dimensional restoration
Advantages
-
Higher hardness than CuAl10 / CuAl10Fe
-
Excellent resistance to abrasion and particle erosion
-
Long service life under heavy wear conditions
-
Customizable diameter and packaging
-
Stable quality and reliable supply
Supply & Delivery
-
Supply Capacity: 5,000 – 10,000 kg per month (adjustable based on order)
-
Lead Time: 10–25 days depending on specifications and quantity
-
Packing: Standard export packing in cartons or wooden crates; custom packaging available upon request
One-Line Inquiry Pitch
Please advise your spraying process (arc or flame), wire diameter, coating thickness and service condition (wear / erosion / corrosion). We will recommend the suitable CuAl11Fe3 thermal spray wire for your project.
