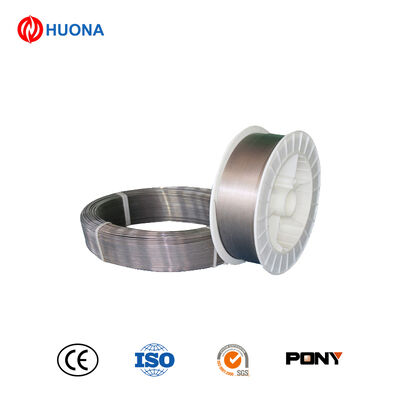

CuAl9Ni5Fe3Mn2 Thermal Spray Wire | Nickel Aluminum Bronze Spray Wire for Seawater Corrosion Resistance, High Wear Resistance & Customizable Diameter
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 10–25 days depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | 5,000 – 10,000 kg per month (adjustable based on order) |
Product Details
| Alloy | Nickel Aluminum Bronze (NAB) | Diameter | 1.6 Mm / 2.0 Mm / 2.5 Mm / 3.0 Mm (customizable) |
|---|---|---|---|
| Process | Arc Spray / Flame Spray | Coating Thickness | 50 – 2000 μm (customizable) |
| Melting Range | Approx. 1020 – 1060°C | Surface Finish | Bright / Copper-coated Optional |
| Packing | Spool / Coil / Drum | ||
| Highlight | CuAl9Ni5Fe3Mn2 thermal spray wire,Nickel Aluminum Bronze spray wire for marine,NAB thermal spray wire with warranty |
||
Product Description
Product Description
CuAl9Ni5Fe3Mn2 thermal spray wire is a premium nickel aluminum bronze (NAB) alloy containing approximately 9% aluminum, 5% nickel, 3% iron and 2% manganese.
It is designed for arc spray and flame spray processes, forming high-strength, wear-resistant and seawater-corrosion-resistant coatings with excellent adhesion and long service life.
This alloy offers outstanding load-bearing capacity, cavitation resistance and anti-galling performance, making it an ideal coating material for marine, offshore and heavy-duty industrial applications.
Key Features
-
Nickel aluminum bronze (NAB) alloy for extreme wear & corrosion resistance
-
Excellent resistance to seawater, cavitation and erosion
-
High hardness and superior load-bearing capacity
-
Strong adhesion and dense coating structure
-
Suitable for arc spray and flame spray
-
Stable wire feeding and consistent coating quality
Typical Chemical Composition (Approx.)
| Element | Cu | Al | Ni | Fe | Mn | Others |
|---|---|---|---|---|---|---|
| wt.% | Balance | 8.5 – 9.5 | 4.5 – 5.5 | 2.5 – 3.5 | 1.5 – 2.5 | ≤ 0.5 |
Typical Specifications
| Item | Specification |
|---|---|
| Product | CuAl9Ni5Fe3Mn2 Thermal Spray Wire |
| Alloy | Nickel Aluminum Bronze (NAB) |
| Diameter | 1.6 mm / 2.0 mm / 2.5 mm / 3.0 mm (customizable) |
| Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) |
| Melting Range | Approx. 1020 – 1060°C |
| Surface Finish | Bright / copper-coated optional |
| Packing | Spool / Coil / Drum |
| MOQ | Negotiable |
Applications
-
Marine shafts, propellers and pump components
-
Bearings and bushings under heavy load
-
Valves and hydraulic components
-
Offshore equipment and seawater systems
-
Surface rebuilding and dimensional restoration
Advantages
-
Top-tier wear resistance among CuAl series
-
Excellent seawater corrosion & cavitation resistance
-
Long service life in marine and heavy-duty environments
-
Customizable diameter and packaging
-
Reliable quality with stable supply
Supply & Delivery
-
Supply Capacity: 5,000 – 10,000 kg per month (adjustable based on order)
-
Lead Time: 10–25 days depending on specifications and quantity
-
Packing: Standard export packing in cartons or wooden crates; custom packaging available upon request
One-Line Inquiry Pitch
Please advise your spraying process (arc or flame), wire diameter, coating thickness and service environment. We will recommend the suitable CuAl9Ni5Fe3Mn2 thermal spray wire for your project.
