ERNiCrMo-13 Welding Wire Alloy 59 for Severe Chemical Environments
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | ERNiCrMo-13 |
| Minimum Order Quantity | 15KG |
| Price | NEGOTIATION |
| Packaging Details | CASE |
| Delivery Time | A WEEK |
| Payment Terms | T/T,Western Union |
| Supply Ability | 1000TON/YEAR |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diameter Range | 1.0 Mm – 4.0 Mm (Standard: 1.2 / 2.4 / 3.2 Mm) | Welding Process | TIG (GTAW), MIG (GMAW) |
|---|---|---|---|
| Product Form | Straight Rods (1m), Precision-layered Spools | Tolerance | Diameter ±0.02 Mm; Length ±1.0 Mm |
| Surface Finish | Bright, Clean, Oxide-free | Packaging | 5kg/10kg/15kg Spools Or 5kg Rod Packs; OEM Label And Export Carton Available |
| Certifications | AWS A5.14 / ASME SFA-5.14 / ISO 9001 / EN 10204 3.1 / RoHS | Storage Life | 12 Months In Dry, Clean Storage At Room Temperature |
| Highlight | ERNiCrMo-13 welding wire,Alloy 59 welding wire,chemical-resistant welding wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description

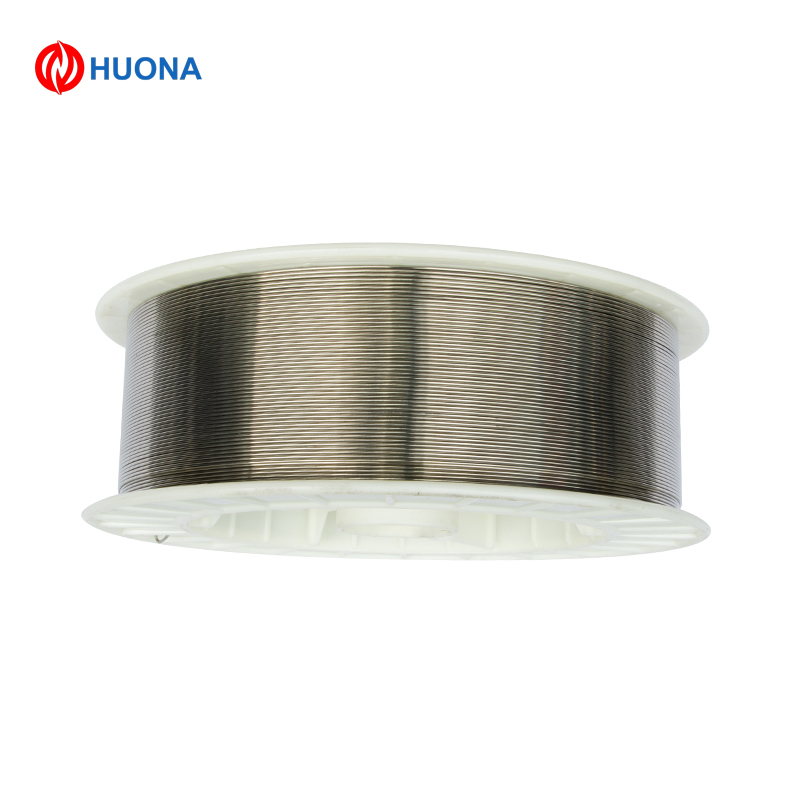

ERNiCrMo-13 Welding Wire (Alloy 59 / UNS N06059)
Nickel-based corrosion-resistant filler metal designed for severe chemical environments
Product Attributes
Diameter Range
1.0 mm – 4.0 mm (Standard: 1.2 / 2.4 / 3.2 mm)
Welding Process
TIG (GTAW), MIG (GMAW)
Product Form
Straight rods (1m), precision-layered spools
Tolerance
Diameter ±0.02 mm; Length ±1.0 mm
Surface Finish
Bright, clean, oxide-free
Packaging
5kg/10kg/15kg spools or 5kg rod packs; OEM label and export carton available
Certifications
AWS A5.14 / ASME SFA-5.14 / ISO 9001 / EN 10204 3.1 / RoHS
Storage Life
12 months in dry, clean storage at room temperature
Product Description
ERNiCrMo-13 is a nickel-chromium-molybdenum alloy welding wire developed for highly corrosive environments where traditional alloys fail. It is equivalent to Alloy 59 (UNS N06059) and is used extensively in the fabrication and repair of equipment exposed to aggressive media, such as strong oxidizers, chloride-bearing solutions, and mixed acid environments.
This filler metal offers excellent resistance to pitting, crevice corrosion, stress corrosion cracking, and intergranular corrosion, even in high-temperature or high-pressure systems. ERNiCrMo-13 is suitable for use with both TIG (GTAW) and MIG (GMAW) welding processes and is often applied in heat exchangers, chemical reactors, flue gas desulfurization units, and offshore structures.
Key Features
- Exceptional corrosion resistance in oxidizing and reducing environments
- Strong resistance to wet chlorine gas, ferric and cupric chlorides, and nitric/sulfuric acid mixtures
- Excellent resistance to localized corrosion and stress corrosion cracking in chloride media
- Good weldability and metallurgical stability
- Designed for critical chemical and marine service applications
- Meets AWS A5.14 ERNiCrMo-13 standards
Typical Applications
- Chemical and petrochemical processing
- Pollution control (scrubbers, absorbers)
- Pulp and paper bleaching systems
- Marine and offshore platforms
- Heat exchangers and high-purity process equipment
- Dissimilar metal welding and corrosion-resistant overlays
Common Names / Designations
- AWS: ERNiCrMo-13
- UNS: N06059
- Trade Name: Alloy 59
- Other Names: Nickel alloy 59 wire, NiCrMo13 welding rod, C-59 filler metal
Typical Chemical Composition (%)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance (≥ 58.0%) |
| Chromium (Cr) | 22.0 - 24.0 |
| Molybdenum (Mo) | 15.0 - 16.5 |
| Iron (Fe) | ≤ 1.5 |
| Cobalt (Co) | ≤ 0.3 |
| Manganese (Mn) | ≤ 1.0 |
| Silicon (Si) | ≤ 0.1 |
| Carbon (C) | ≤ 0.01 |
| Copper (Cu) | ≤ 0.3 |
Mechanical Properties (As-Welded)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 760 MPa (110 ksi) |
| Yield Strength (0.2% OS) | ≥ 420 MPa (61 ksi) |
| Elongation | ≥ 30% |
| Hardness (Brinell) | 180 - 200 BHN |
| Operating Temperature | -196°C to +1000°C |
| Corrosion Resistance | Excellent in both oxidizing and reducing environments |
| Weld Soundness | High integrity, low porosity, no hot cracking |
Available Specifications
| Item | Detail |
|---|---|
| Diameter Range | 1.0 mm - 4.0 mm (Standard: 1.2 / 2.4 / 3.2 mm) |
| Welding Process | TIG (GTAW), MIG (GMAW) |
| Product Form | Straight rods (1m), precision-layered spools |
| Tolerance | Diameter ±0.02 mm; Length ±1.0 mm |
| Surface Finish | Bright, clean, oxide-free |
| Packaging | 5kg/10kg/15kg spools or 5kg rod packs; OEM label and export carton available |
| Certifications | AWS A5.14 / ASME SFA-5.14 / ISO 9001 / EN 10204 3.1 / RoHS |
| Country of Origin | China (OEM/customization accepted) |
| Storage Life | 12 months in dry, clean storage at room temperature |
Optional Services
- Customized diameter or length
- Third-party inspection (SGS/BV/TÜV)
- Moisture-resistant packaging for export
- Multilingual label and MSDS support
Related Alloys
- ERNiCrMo-3 (Inconel 625)
- ERNiCrMo-4 (Inconel 686)
- ERNiCrMo-10 (Hastelloy C22)
- ERNiCrMo-13 (Alloy 59)
- ERNiMo-3 (Hastelloy B2)
