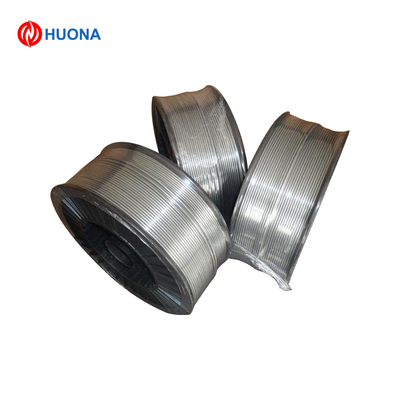

ERNiCrMo-4 Inconel 686 Welding Wire for High-Temperature Corrosion Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO 9001 SGS |
| Model Number | ERNiCrMo-4 |
| Minimum Order Quantity | 15KG |
| Price | NEGOTIATION |
| Packaging Details | CASE |
| Delivery Time | A WEEK |
| Payment Terms | T/T,Western Union |
| Supply Ability | 1000TON/YEAR |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | ≥ 760 MPa | Yield Strength | ≥ 400 MPa |
|---|---|---|---|
| Elongation | ≥ 30% | Operating Temperature | Up To 1000°C |
| Diameter Range | 1.0 Mm – 4.0 Mm (Typical Sizes: 1.2 Mm / 2.4 Mm / 3.2 Mm) | Welding Process | TIG (GTAW), MIG (GMAW) |
| Packaging | 5kg / 15kg Precision Spools Or Straight-cut Rods (1m Standard) | Item Detail Diameter Range 1.0 Mm – 4.0 Mm (Typical Sizes 1.2 Mm / 2.4 Mm / 3.2 Mm) Welding Process | Labeling, Packaging, Barcode, And Customization Available |
| Highlight | Inconel 686 welding wire,ERNiCrMo-4 thermal spray wire,high-temperature corrosion resistant wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
ERNiCrMo-4 Welding Wire (Inconel 686 / UNS N06686 / Nickel Alloy)
High-performance corrosion-resistant filler metal for critical applications
Product Overview
ERNiCrMo-4 is a premium nickel-chromium-molybdenum-tungsten (NiCrMoW) alloy welding wire designed for the most demanding corrosion environments. Equivalent to Inconel 686 (UNS N06686), this wire delivers exceptional resistance to a wide range of corrosive media including strong oxidizers, acids (sulfuric, hydrochloric, nitric), seawater, and high-temperature gases.
Ideal for both cladding and joining, ERNiCrMo-4 is widely used in chemical processing, flue gas desulfurization (FGD) systems, marine engineering, and pollution control equipment. Compatible with TIG (GTAW) and MIG (GMAW) welding processes, it provides crack-free, durable welds with excellent mechanical and corrosion-resistant performance.
Key Features
- Outstanding resistance to pitting, crevice corrosion, and stress corrosion cracking
- Performs in aggressive oxidizing and reducing environments including wet chlorine, hot acids, and seawater
- High-temperature strength and structural stability up to 1000°C
- Excellent weldability and arc stability in both MIG and TIG processes
- Suitable for overlay welding on carbon or stainless steel components
- Conforms to AWS A5.14 ERNiCrMo-4 / UNS N06686
Common Names / Designations
- AWS: ERNiCrMo-4
- UNS: N06686
- Equivalent: Inconel 686, Alloy 686, NiCrMoW
- Other Names: Alloy 686 welding wire, high-performance nickel alloy filler, corrosion-resistant overlay wire
Typical Applications
- Chemical reactors and pressure vessels
- Flue gas desulfurization (FGD) systems
- Seawater piping, pumps, and valves
- Marine exhaust and pollution control equipment
- Dissimilar metal welding and protective cladding
- Heat exchangers in aggressive chemical media
Chemical Composition (% Typical)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance (min. 59%) |
| Chromium (Cr) | 19.0 - 23.0 |
| Molybdenum (Mo) | 15.0 - 17.0 |
| Tungsten (W) | 3.0 - 4.5 |
| Iron (Fe) | ≤ 5.0 |
| Cobalt (Co) | ≤ 2.5 |
| Manganese (Mn) | ≤ 1.0 |
| Carbon (C) | ≤ 0.02 |
| Silicon (Si) | ≤ 0.08 |
Mechanical Properties (As-Welded)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 760 MPa |
| Yield Strength | ≥ 400 MPa |
| Elongation | ≥ 30% |
| Operating Temperature | Up to 1000°C |
| Corrosion Resistance | Outstanding |
Available Specifications
| Item | Detail |
|---|---|
| Diameter Range | 1.0 mm - 4.0 mm (Typical sizes: 1.2 mm / 2.4 mm / 3.2 mm) |
| Welding Process | TIG (GTAW), MIG (GMAW) |
| Packaging | 5kg / 15kg precision spools or straight-cut rods (1m standard) |
| Surface Condition | Bright, clean, rust-free |
| OEM Services | Labeling, packaging, barcode, and customization available |
Related Alloys
- ERNiCrMo-3 (Inconel 625)
- ERNiCrMo-10 (C22)
- ERNiMo-3 (Alloy B2)
- ERNiFeCr-2 (Inconel 718)
- ERNiCrCoMo-1 (Inconel 617)
