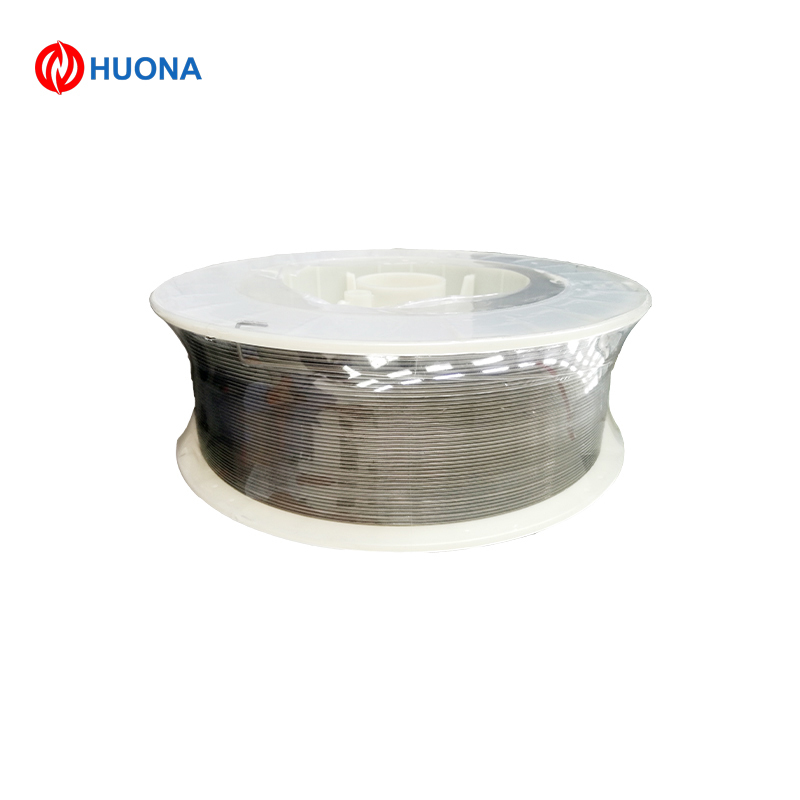

ERNiCrCoMo-1 Inconel 617 Welding Wire for TIG MIG High-Temp
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | ERNiCrCoMo-1 |
| Minimum Order Quantity | 15KG |
| Price | negotiation |
| Packaging Details | Case |
| Delivery Time | 1 week |
| Payment Terms | T/T,Western Union,MoneyGram |
| Supply Ability | 1000ton/year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | ≥760 MPa | Yield Strength | ≥370 MPa |
|---|---|---|---|
| Elongation | ≥30% | Creep Resistance | Excellent |
| Operating Temperature | Up To 1100°C | Diameter Options | 0.8 Mm, 1.0 Mm, 1.2 Mm, 1.6 Mm, 2.4 Mm, 3.2 Mm (custom Sizes Available) |
| Welding Process | TIG (GTAW), MIG (GMAW) | Packaging | 5kg / 10kg / 15kg Spools Or Cut-length Rods |
| Highlight | Inconel 617 welding wire,high-temperature TIG MIG wire,ERNiCrCoMo-1 thermal spray wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
ERNiCrCoMo-1 Welding Wire (Inconel 617 / UNS N06617) – Nickel-Based Alloy Filler Metal for High-Temperature TIG & MIG Applications
Product Overview
ERNiCrCoMo-1 is a high-performance nickel-chromium-cobalt-molybdenum alloy welding wire designed for joining Inconel 617 and other high-temperature alloys. It offers exceptional strength, oxidation resistance, and metallurgical stability in service environments up to 1100°C (2012°F).
This filler metal is ideal for applications in aerospace, power generation, petrochemical, and nuclear industries where resistance to extreme heat and corrosion is required. Compatible with both TIG (GTAW) and MIG (GMAW) welding processes, ERNiCrCoMo-1 delivers excellent arc stability, smooth bead appearance, and low spatter.
Key Features
- Excellent high-temperature strength and creep resistance up to 1100°C
- Superior oxidation, carburization, and nitridation resistance
- Stable arc performance with clean weld beads and low spatter
- High metallurgical stability during prolonged thermal exposure
- Effective for dissimilar metal joining with stainless or ferritic steels
- Resistance to corrosion from sulfur compounds and acidic gases
- Strong mechanical properties at ambient and elevated temperatures
- Suitable for complex welded structures subject to stress and vibration
- Low thermal expansion mismatch for crack-resistant welds
- Complies with AWS A5.14 and other industrial welding standards
Technical Specifications
Chemical Composition (% Typical)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance (~50-60%) |
| Chromium (Cr) | 20.0 - 24.0 |
| Cobalt (Co) | 10.0 - 15.0 |
| Molybdenum (Mo) | 8.0 - 10.0 |
| Iron (Fe) | ≤3.0 |
| Aluminum (Al) | ≤1.5 |
| Carbon (C) | ≤0.10 |
| Manganese (Mn) | ≤1.0 |
| Silicon (Si) | ≤0.75 |
Mechanical Properties (Typical)
| Property | Value |
|---|---|
| Tensile Strength | ≥760 MPa |
| Yield Strength | ≥370 MPa |
| Elongation | ≥30% |
| Creep Resistance | Excellent |
| Operating Temperature | Up to 1100°C |
Product Specifications
Diameter Options
0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm, 2.4 mm, 3.2 mm (custom sizes available)
Welding Process
TIG (GTAW), MIG (GMAW)
Packaging
5kg / 10kg / 15kg spools or cut-length rods
Surface Finish
Bright, clean, anti-rust treated
OEM Services
Private labeling, logo printing, barcode customization
Common Names / Designations
- AWS Specification: ERNiCrCoMo-1 (AWS A5.14)
- UNS Number: N06617
- Trade Name: Inconel 617 Welding Wire
- Other Names: Nickel 617 Filler Wire, Alloy 617 MIG/TIG Wire
Typical Applications
- Gas turbines and combustor liners
- Heat exchangers and reformer tubes
- Nuclear reactor components and shields
- Furnace parts and radiant heating equipment
- High-pressure steam piping and boiler superheaters
- Dissimilar metal joints in power and chemical plants
Related Products
We also supply a full range of high-performance nickel alloy welding wires:
- ERNiCrMo-3 (Inconel 625)
- ERNiFeCr-2 (Inconel 718)
- ERNiMo-10 (Hastelloy C276)
- ERNiCu-7 (Monel 400)
- ERNi-1 (Nickel 200)
