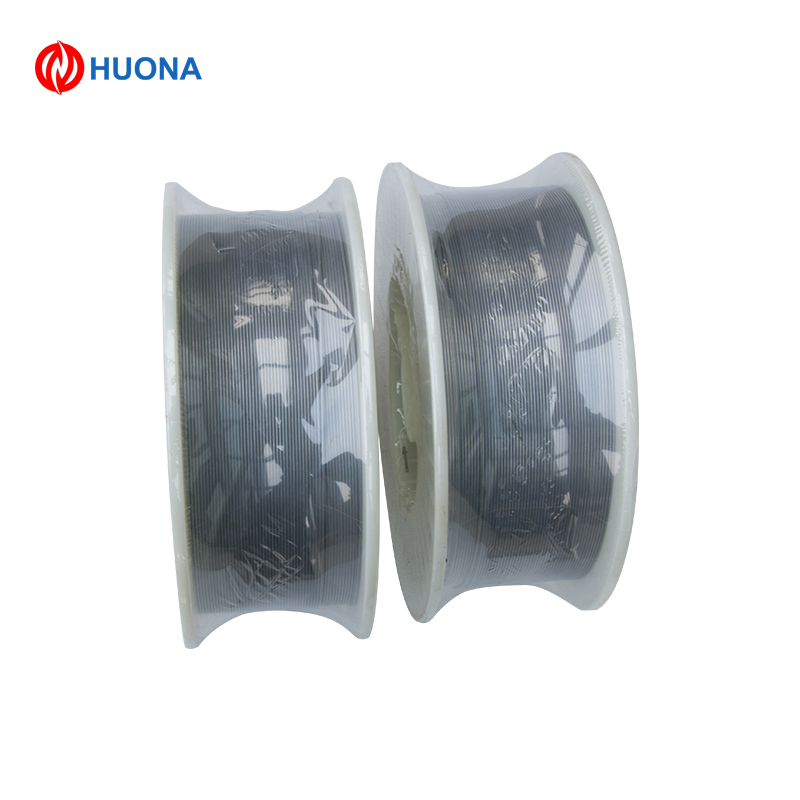

C276 Nickel Alloy Welding Wire ERNiCrMo-4 for Harsh Chemical Environments
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | Negotiation |
| Packaging Details | Case |
| Delivery Time | a week |
| Payment Terms | T/T |
| Supply Ability | 10000ton /year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | ≥760 MPa (110 Ksi) | Yield Strength | ≥350 MPa (51 Ksi) |
|---|---|---|---|
| Elongation | ≥30% | Hardness (HB) | ~190–220 |
| Wire Diameter | 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable) | Spool Weight | 5kg / 10kg / 15kg / 20kg |
| Highlight | C276 nickel alloy welding wire,ERNiCrMo-4 welding wire,welding wire for chemical environments |
||
You can tick the products you need and communicate with us in the message board.
Product Description
C276 Welding Wire /SNi276 (ERNiCrMo-4 / UNS N10276)
Nickel Alloy MIG/TIG Wire for Harsh Chemical Environments
Technical Specifications
| Attribute | Value |
|---|---|
| Tensile Strength | ≥760 MPa (110 ksi) |
| Yield Strength | ≥350 MPa (51 ksi) |
| Elongation | ≥30% |
| Hardness (HB) | ~190–220 |
| Wire Diameter | 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable) |
| Spool Weight | 5kg / 10kg / 15kg / 20kg |
Product Overview
C276 welding wire (ERNiCrMo-4) is a premium nickel-molybdenum-chromium alloy filler metal designed for demanding welding applications. It provides outstanding resistance to strong oxidizing and reducing agents, chloride-induced corrosion, and a wide variety of aggressive chemicals including hydrochloric, sulfuric, and phosphoric acids.
This wire is ideal for welding Hastelloy C-276 base metal, as well as for dissimilar metal welding. It is used in highly corrosive environments such as chemical processing, marine systems, and flue gas scrubbers.
Standard Designations
- AWS Classification: ERNiCrMo-4
- UNS Number: N10276
- Trade Name: Hastelloy® C-276 Welding Wire
- Other Names: Alloy C276 Wire, NiCrMo-4 Welding Wire, Nickel 276 MIG/TIG Wire
Key Features
- Superior corrosion resistance in both oxidizing and reducing environments
- Excellent resistance to pitting, crevice corrosion, and stress corrosion cracking
- Good mechanical strength and metallurgical stability
- Smooth arc and low spatter during welding
- Suitable for both TIG and MIG welding applications
- Compatible with dissimilar metal joints
Typical Applications
- Chemical reactors and process vessels
- Acid storage tanks and transfer systems
- Marine equipment exposed to seawater
- Heat exchangers and pressure equipment
- Flue gas desulfurization (FGD) systems
- Pharmaceutical and pollution control equipment
Chemical Composition (Typical, %)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Molybdenum (Mo) | 15.0 - 17.0 |
| Chromium (Cr) | 14.5 - 16.5 |
| Iron (Fe) | 4.0 - 7.0 |
| Tungsten (W) | 3.0 - 4.5 |
| Cobalt (Co) | ≤2.5 |
| Manganese (Mn) | ≤1.0 |
| Carbon (C) | ≤0.02 |
| Silicon (Si) | ≤0.08 |
| Sulfur (S) | ≤0.03 |
Product Specifications
| Item | Specification |
|---|---|
| Wire Diameter | 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable) |
| Welding Process | TIG (GTAW), MIG (GMAW) |
| Spool Weight | 5kg / 10kg / 15kg / 20kg |
| Shielding Gas | Ar, Ar+He (TIG) / Ar+CO₂ (MIG) |
| Packaging | Vacuum-packed spools, cartons, pallets |
| OEM Support | Available - private labels, logos, barcodes |
We also supply Hastelloy C22, Inconel 625, and other nickel alloy welding consumables. Free samples and technical datasheets are available upon request. Custom compositions and packaging options can be tailored to your application.
