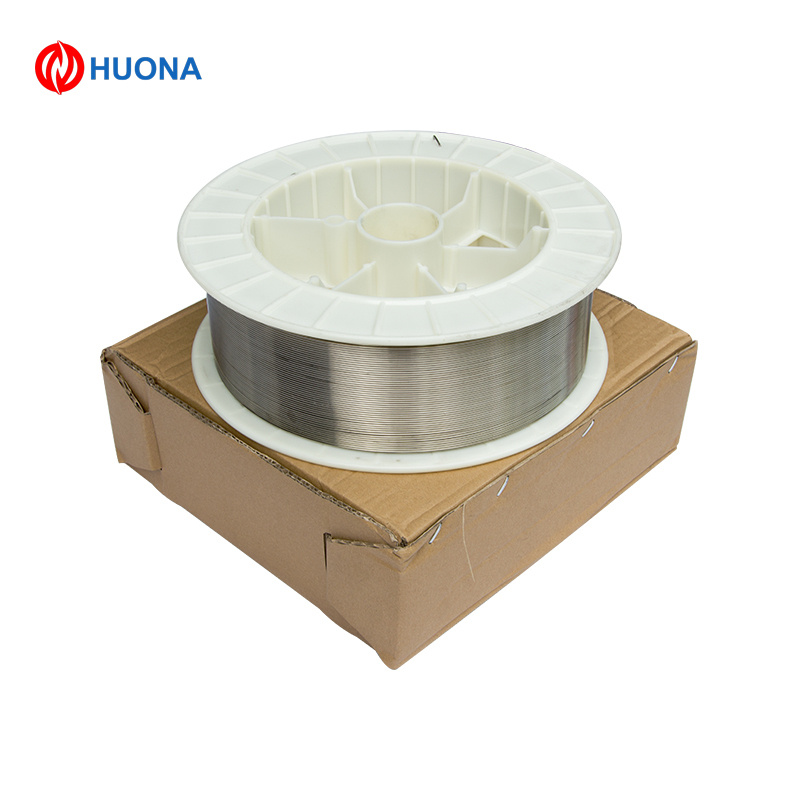

Inconel 625 ERNiCrMo-3 Welding Wire for Corrosion Resistance
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | Negotiation |
| Packaging Details | Case |
| Delivery Time | 7–15 working days for standard sizes |
| Payment Terms | T/T |
| Supply Ability | 10000ton /year |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Coil/Spool Weight | 5kg / 10kg / 15kg / 20kg | Wire Diameter | 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable) |
|---|---|---|---|
| Welding Process | MIG / TIG | Tensile Strength | ≥760 MPa (110 Ksi) |
| Yield Strength | ≥380 MPa (55 Ksi) | Elongation (in 2") | ≥30% |
| Highlight | Inconel 625 welding wire,ERNiCrMo-3 corrosion resistant wire,Inconel 625 ERNiCrMo-3 filler wire |
||
You can tick the products you need and communicate with us in the message board.
Product Description
Nickel Alloy ERNiCrMo-3 Welding Wire (Inconel 625 / UNS N06625)
Premium nickel-based MIG/TIG welding wire for corrosion resistance and high-temperature applications
Product Specifications
| Coil/Spool Weight | 5kg / 10kg / 15kg / 20kg |
| Wire Diameter | 0.8mm / 1.0mm / 1.2mm / 1.6mm (customizable) |
| Welding Process | MIG / TIG |
| Tensile Strength | ≥760 MPa (110 ksi) |
| Yield Strength | ≥380 MPa (55 ksi) |
| Elongation (in 2") | ≥30% |
Product Description
Product Name: Inconel® 625 Welding Wire
AWS Classification: ERNiCrMo-3
Type: Nickel-Chromium-Molybdenum alloy filler wire
Form: MIG (GMAW) or TIG (GTAW) wire
Standard Compliance: AWS A5.14 / ASME SFA-5.14
Inconel 625 welding wire is a premium nickel-based filler metal formulated for joining and surfacing applications that demand superior corrosion resistance and high-temperature strength. It contains significant amounts of chromium, molybdenum, and niobium, making it highly resistant to pitting, crevice corrosion, stress corrosion cracking, and oxidation in harsh environments, including seawater, chemical processing, and high-heat zones.
This wire is suitable for welding Inconel 625, Inconel 601, and similar nickel-chromium-molybdenum alloys, as well as dissimilar metal welding involving stainless steels and low-alloy steels.
Key Features
- Exceptional corrosion resistance in seawater, acidic, and chloride-rich environments
- Outstanding strength and oxidation resistance at elevated temperatures (up to 1000°C / 1830°F)
- Excellent weldability with low spatter and smooth bead finish
- Ideal for dissimilar metal welding (Ni to SS, Ni to low alloy steel)
- Available for both MIG and TIG welding processes
Typical Applications
- Offshore and marine structures
- Heat exchangers and pressure vessels
- Chemical processing and petrochemical equipment
- Aerospace engine components and exhaust systems
- Power generation, including waste incineration plants
- Piping and tanks exposed to seawater or aggressive chemicals
Chemical Composition (Typical, %)
| Element | Content (%) |
|---|---|
| Nickel (Ni) | Balance |
| Chromium (Cr) | 20.0 - 23.0 |
| Molybdenum(Mo) | 8.0 - 10.0 |
| Iron (Fe) | ≤5.0 |
| Niobium + Ta | 3.15 - 4.15 |
| Carbon (C) | ≤0.10 |
| Manganese (Mn) | ≤0.50 |
| Silicon (Si) | ≤0.50 |
| Sulfur (S) | ≤0.015 |
Mechanical Properties (Weld Metal Typical)
| Property | Value |
|---|---|
| Tensile Strength | ≥760 MPa (110 ksi) |
| Yield Strength | ≥380 MPa (55 ksi) |
| Elongation (in 2") | ≥30% |
| Hardness (HB) | ~200 |
Packaging & Delivery
- Plastic spool, steel basket, or straight length rod
- Vacuum-sealed and rust-proof packaging
- Export cartons with pallet
- Lead time: 7-15 working days for standard sizes
- Free sample available for evaluation
We also offer matching Inconel 625 welding rods and custom formulations for high-performance welding applications. Please contact us with your specifications or for a technical consultation.
