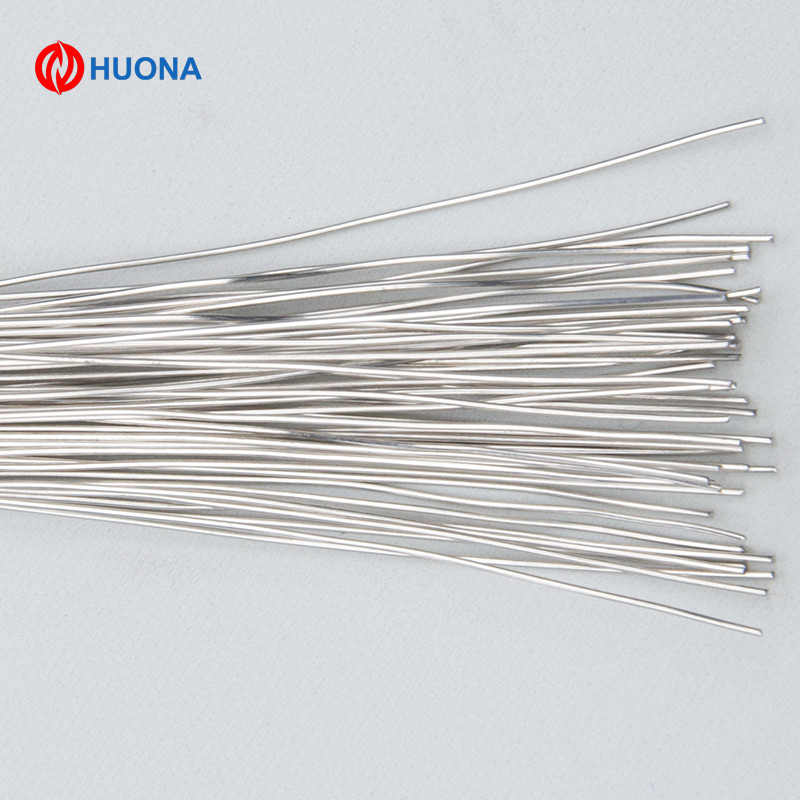

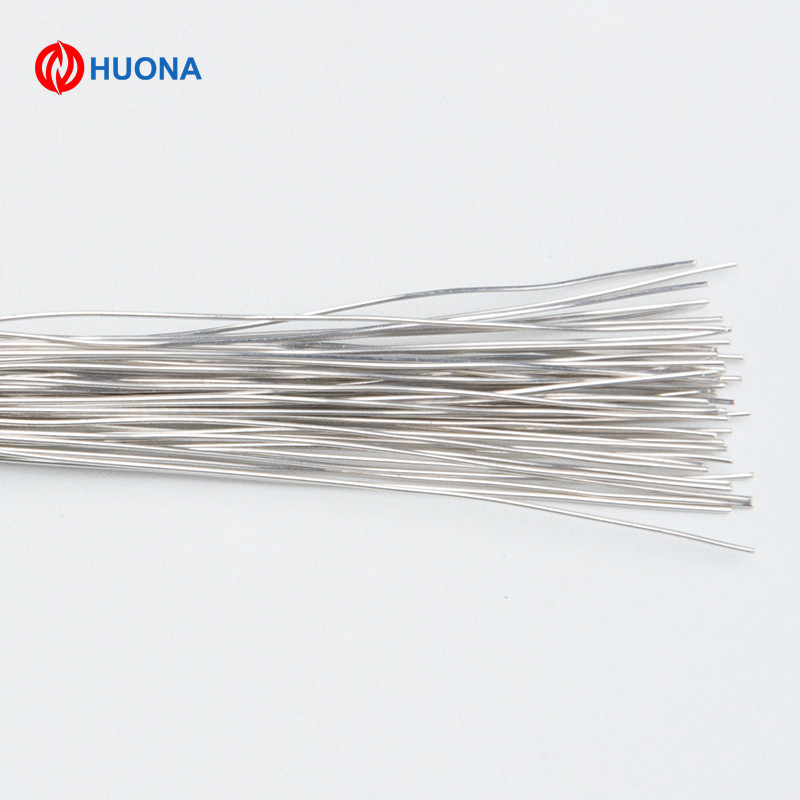

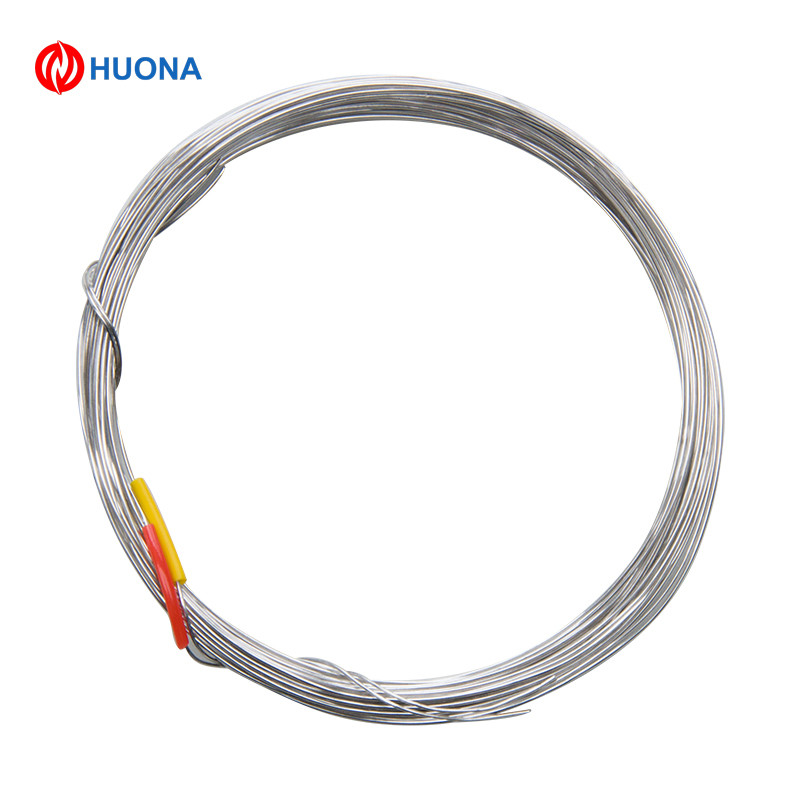

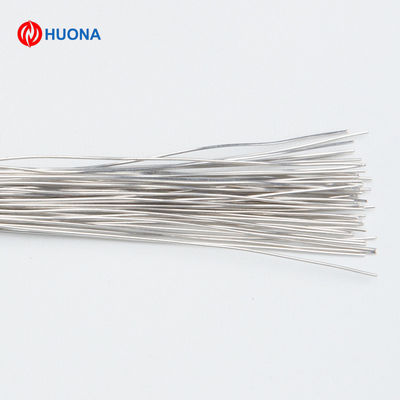

High Temperature Molybdenum Spray Wire Anti Wear Coating For Arc Spray
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | WIRE |
| Minimum Order Quantity | 1KG |
| Price | $35.00-70.00 |
| Packaging Details | Standard plywood box packaging or on your request for molybdenum wire. |
| Delivery Time | A WEEK |
| Payment Terms | T/T |
| Supply Ability | 30 Ton/Tons per Month molybdenum wire |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Dimensions | 0.18mm | Place Of Origin | CHINA |
|---|---|---|---|
| Model Number | Molybdenum Wire | Tensile Strength | 620MPa |
| Molybdenum Specifications | AMS 7800 | Type | Molybdenum Wire |
| Density | 10.2g/cm3 | ||
| Highlight | High Temperature Molybdenum Spray Wire,High Temperature Thermal Spray Wire,Anti Wear Molybdenum Spray Wire |
||
Product Description
High Quality Thermal Spray Alloy Molybdenum Wire Prices
Product Description
Composition of molybdenum wire
|
Grade |
The impurity content is not more than % |
|||||||
|
Fe |
Ni |
Al |
Si |
Mg |
C |
N |
O |
|
|
Mo-1 |
0.01 |
0.005 |
0.002 |
0.01 |
0.005 |
0.01 |
0.003 |
0.008 |
|
Mo-2 |
0.01 |
0.005 |
0.005 |
0.01 |
0.005 |
0.01 |
0.003 |
0.02 |
Specifications of molybdenum wire
|
Molybdenum Wire Types |
Diameter (inch) |
Tolerance (%) |
|
Molybdenum Wire for EDM |
0.0024" ~ 0.01" |
±3% wt |
|
Molybdenum Spray Wire |
1/16" ~ 1/8" |
±1% to 3% wt |
|
Molybdenum Wire |
0.002" ~ 0.08" |
±3% wt |
|
Molybdenum Wire(clean) |
0.006" ~ 0.04" |
±3% wt |
Molybdenum wire application:
1.Molybdenum wire(spray moly wire)is mainly used for auto parts spraying,such as piston ring,synchronizer rings,shift elements,etc.Molybdenum spray wire is also used in repairs of machine parts,such as bearing,bearing shells,shafts,etc.
2.Molybdenum wire for wire-cutting application is characteristic in high tensile strength,good electric discharge,smooth finish,high cutting speed,long life and etc.
3.It is also used as electric light source parts,high temperature and heating elements,etc.
Molybdenum wire advantage:
1.Molybdenum wire high pricision,line diameter tolerance control at less than 0 to 0.002mm
2.The ratio of breaking wire low,processing rate is high,good performance and good price.
3.Can finish the stable long time continuous processing.
Packaging & Shipping
Packaging:Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company,We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Our Services
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
