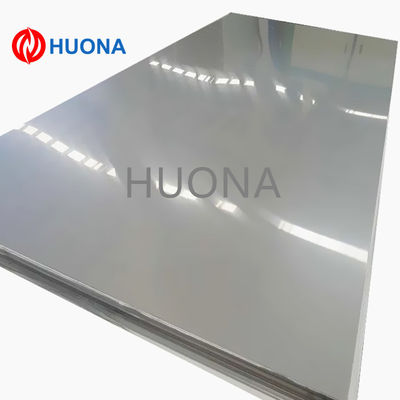

N04400/2.4360/2.4361/ASTM Monel 400 Sheet SGS Nickel Alloy Plate High Strength
| Place of Origin | Shanghai, China |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 SGS |
| Model Number | Monel 400 |
| Minimum Order Quantity | 100 KG |
| Price | negotiable |
| Packaging Details | Wooden Case |
| Delivery Time | 7-20 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 100 Tons per month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Monel 400 Sheet/Plate | Surface Treatment | Polishing |
|---|---|---|---|
| Thickness | 1.0mm Min. | Surface | Bright And Black |
| Trademark | HUONA | HS Code | 7506200000 |
| Production Capacity | 2000 Tons/Year | Origin | Shanghai - China |
| Highlight | SGS Monel 400 Sheet,SGS Nickel Alloy Plate,High Strength Monel 400 Sheet |
||
Product Description
Monel 400 alloy is a nickel copper alloy which has high strength over a wide temperature range up to 1000 F. It is regarded as being a ductile Nickel-Copper alloy with resistance to a wide variety of corrosive conditions. This alloy is most frequently applied in a range of environments going from mildly oxidizing through neutral and to moderately reducing conditions. Additional application area of this material is in marine environments and other non-oxidizing chloride solutions. Like with commercially pure Nickel, Monel® 400 is low in strength in the annealed condition, for this reason a variety of tempers are used to achieve higher strength levels. Monel 400 is one of the few alloys that maintains its strength in sub-zero or cryogenic temperatures, so it is often used in those applications.
Composition
The chemical composition of MONEL 400 alloy is given in the following table.
| Element | Content (%) |
| Nickel, Ni | Remainder |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.5 max |
| Manganese, Mn | 2 max |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.3 max |
| Sulphur, S | 0.024 |
Grade Specification
| Grade | UNS | DIN | EN | AMS | ASTM | JIS | |
| Monel 400 | N04400 |
|
2.4360 2.4361 |
AMS 4574
AMS 4675
AMS 4731
|
ASTM B163
ASTM B165
ASTM F96
|
- | |
Characteristic
Corrosion resistance in an extensive range of marine and chemical environments. From pure water to nonoxidizing mineral acids, salts and alkalis.
This alloy is more resistant to nickel under reducing conditions and more resistant than copper under oxidizing conditions, it does show however better resistance to reducing media than oxidizing.
Good mechanical properties from subzero temperatures up to about 480C.
Good resistance to sulfuric acids. Aeration however will result in increased corrosion rates. May be used to handle hydrochloric acid, but the presence of oxidizing salts will greatly accelerate corrosive attack.
Resistance to neutral, alkaline and acid salts is shown, but poor resistance is found with oxidizing acid salts such as ferric chloride.
Excellent resistance to chloride ion stress corrosion cracking.
Mechanical & Physical Properties
The mechanical properties of MONEL 400 alloy are tabulated below.
| properties | Metric | Imperial |
| Tensile strength(annealed) | 517-620 MPa | 75-90 ksi |
| Yield strength | 172-345 MPa | 25-50 ksi |
| Modulus of elasticity | 179 GPa | 26000 ksi |
| Poisson's ratio | 0.32 | 0.32 |
