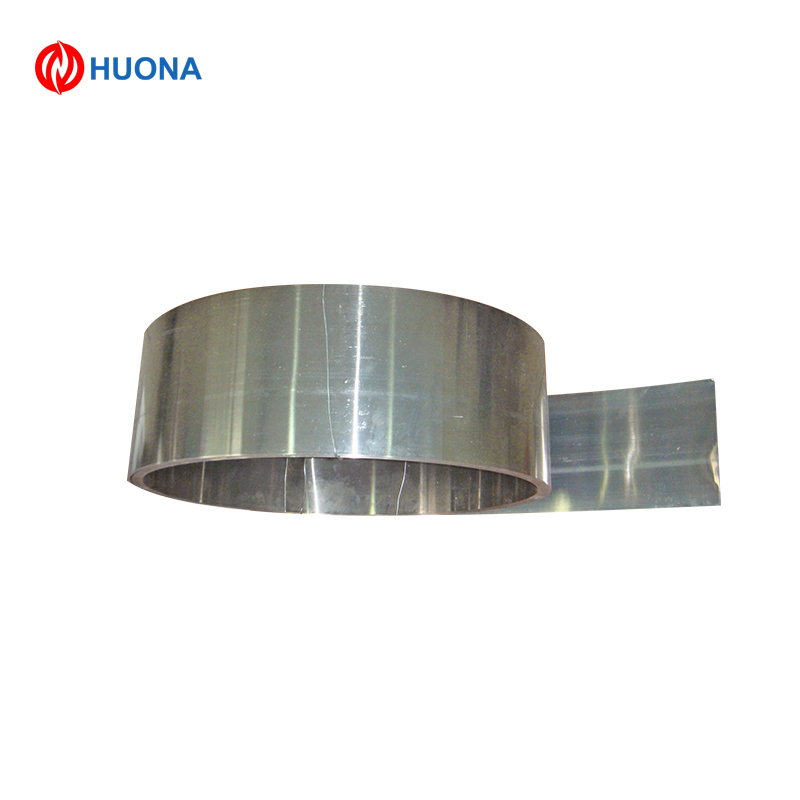

1j66 Soft Magnetic Alloy Strip /Plate /Sheet Ni65mn
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | 1J66 |
| Minimum Order Quantity | 10 |
| Price | DISCUSS |
| Packaging Details | Wooden Case |
| Delivery Time | 7-21 DAYS |
| Payment Terms | L/C,T/T,Western Union,MoneyGram |
| Supply Ability | 200ton/Month |
Contact me for free samples and coupons.
WhatsAPP:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | 1J66 | Standard | GB, DIN, ASTM |
|---|---|---|---|
| Curie Point | 600 | Surface Treatment | Polishing |
| Purity | 65% | State | Soft State |
| Density | 8.25 | Resisivity | 0.25 |
| Production Capacity | 200ton/Month | ||
| Highlight | soft magnetic alloy strip,Ni65mn alloy sheet,soft magnetic alloy plate |
||
You can tick the products you need and communicate with us in the message board.
Product Description
1J66 Soft Magnetic Alloy Strip / Plate / Sheet Ni65Mn
Product Specifications
| Attribute | Value |
|---|---|
| Model NO. | 1J66 |
| Standard | GB, DIN, ASTM |
| Curie Point | 600 |
| Surface Treatment | Polishing |
| Purity | 65% |
| State | Soft State |
| Density | 8.25 |
| Resistivity | 0.25 |
| Production Capacity | 200ton/Month |
Product Description
Constant permeability soft magnetic alloy. General soft magnetic alloy magnetic permeability will change with the change of the magnetic field intensity and rapidly, while constant magnetic conductivity of alloy is within the scope of a certain width of the magnetic field strength, permeability remains basically constant, and in a certain temperature and frequency range also remains fairly constant. This alloy constant permeability properties can be gained through the study of the transverse magnetic field heat treatment of alloys.
Chemical Composition
| Composition | C | P | S | Mn | Si |
|---|---|---|---|---|---|
| Content(%) ≤ | 0.03 | 0.02 | 0.02 | 0.7~1.1 | 0.1 |
| Composition | Ni | Cr | Mo | Cu | Fe |
| Content(%) | 64.5~66.5 | - | - | - | Bal |
Physical Properties
| Shop Sign | Melting Point (ºC) | Resistivity (μΩ*m) | Density (g/cm³) | Curie Point (ºC) | Saturated Magnetic Induction Intensity |
|---|---|---|---|---|---|
| 1J46 | - | 0.25 | 8.25 | 600 | 1.3 |
Soft magnetic alloys are weak magnetic field materials with high permeability and low coercive force. These alloys are widely used in radio electronics, precision instruments and meters, remote control and automatic control systems. The combination is mainly used for energy conversion and information processing, making them important materials in the national economy.
Applications
- Small transformers
- Pulse transformers
- Relays
- Transformers
- Magnetic amplifiers
- Electromagnetic clutches
- Reactor cores
- Magnetic shielding for weak magnetic or secondary magnetic field applications
Key Features
- Low coercivity and magnetic hysteresis loss
- High resistivity and low eddy-current loss
- High initial magnetic permeability and maximum magnetic permeability
- High saturation magnetic flux density
Packaging Details
- Coil (plastic spool) + compressed ply-wooden case + pallet
- Coil (plastic spool) + carton + pallet
Products and Services
- ISO9001 and ISO14001 certified
- Comprehensive after-sale services
- Small orders accepted
- Fast delivery
