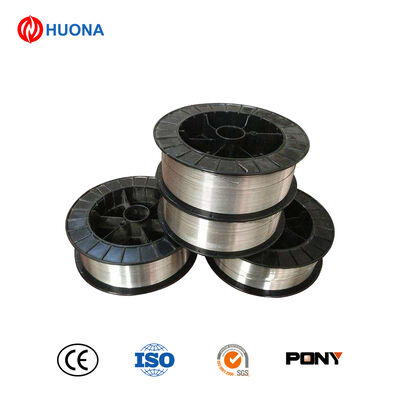

CuAl8 Thermal Spray Wire - 8% Aluminum Bronze Alloy for Heavy-Duty Wear & Corrosion Protection
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 10–25 days depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | 5,000 – 10,000 kg per month (adjustable based on order) |
Product Details
| Product | CuAl8 Thermal Spray Wire | Alloy | Aluminum Bronze (8% Al) |
|---|---|---|---|
| Diameter | 1.6 Mm / 2.0 Mm / 2.5 Mm / 3.0 Mm (customizable) | Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) | Melting Range | Approx. 1040 – 1060°C |
| Surface Finish | Bright / Copper-coated Optional | Packing | Spool / Coil / Drum |
| Highlight | CuAl8 thermal spray wire,aluminum bronze spray wire for corrosion protection,heavy-duty wear thermal spray wire |
||
Product Description
Product Description
CuAl8 thermal spray wire is an aluminum bronze alloy wire containing approximately 8% aluminum, designed for thermal spraying to produce heavy-duty wear-resistant and corrosion-resistant coatings.
Compared with CuAl7, CuAl8 provides higher hardness, improved load-bearing capacity, and superior corrosion resistance, making it ideal for marine equipment, pump components, shafts, and industrial machinery.
It is suitable for arc spray and flame spray processes, producing dense coatings with strong adhesion and long service life.
Key Features
-
Aluminum bronze alloy (CuAl8) with higher hardness and wear resistance
-
Excellent corrosion resistance, especially in marine and industrial environments
-
High load-bearing capacity and sliding performance
-
Strong adhesion and uniform coating structure
-
Suitable for arc spray and flame spray processes
-
Stable wire feeding and consistent coating quality
Typical Chemical Composition (Approx.)
| Element | Cu | Al | Fe | Others |
|---|---|---|---|---|
| wt.% | Balance | 7.5 – 8.5 | ≤ 1.0 | ≤ 0.5 |
Typical Specifications
| Item | Specification |
|---|---|
| Product | CuAl8 Thermal Spray Wire |
| Alloy | Aluminum Bronze (8% Al) |
| Diameter | 1.6 mm / 2.0 mm / 2.5 mm / 3.0 mm (customizable) |
| Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) |
| Melting Range | Approx. 1040 – 1060°C |
| Surface Finish | Bright / copper-coated optional |
| Packing | Spool / Coil / Drum |
| MOQ | Negotiable |
Applications
-
Shafts, journals, and pump components
-
Bearings and bushings under heavy load
-
Sliding and friction surfaces
-
Marine equipment and valves
-
Surface rebuilding and dimensional restoration
Advantages
-
Higher wear and load-bearing resistance than CuAl7
-
Superior corrosion resistance in harsh environments
-
Stable spraying with good adhesion
-
Customizable diameter and packaging
-
Long service life and reliable quality
Supply & Delivery
-
Supply Capacity: 5,000 – 10,000 kg per month (adjustable based on order)
-
Lead Time: 10–25 days depending on specifications and quantity
-
Packing: Standard export packing in cartons or wooden crates; custom packaging available upon request
One-Line Inquiry Pitch
Please advise your spraying process (arc or flame), wire diameter, coating thickness, and application environment. We will recommend the suitable CuAl8 thermal spray wire for your project.
