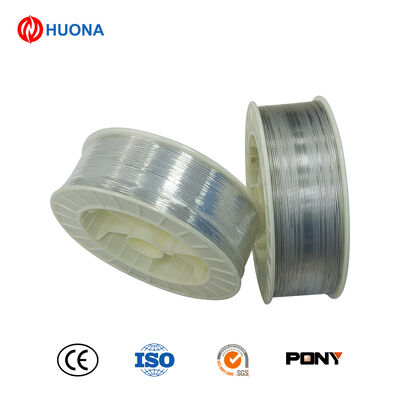

CuSi3Mn1 Thermal Spray Wire - Wear Resistant & Corrosion Resistant Silicon Bronze Spray Wire with Customizable Diameter
| Place of Origin | CHINA |
|---|---|
| Brand Name | HUONA |
| Certification | ISO9001 |
| Model Number | WIRE |
| Minimum Order Quantity | 15KG |
| Price | NEGOTATION |
| Packaging Details | Standard export packing in cartons or wooden crates; custom packaging available upon request |
| Delivery Time | 10–25 days depending on specifications and quantity |
| Payment Terms | T/T |
| Supply Ability | 5,000 – 10,000 kg per month (adjustable based on order) |
Product Details
| Product | CuSi3Mn1 Thermal Spray Wire | Alloy | Silicon Bronze |
|---|---|---|---|
| Diameter | 1.6 Mm / 2.0 Mm / 2.5 Mm / 3.0 Mm (customizable) | Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) | Melting Range | Approx. 950 – 1020°C |
| Surface Finish | Bright / Copper-coated Optional | Packing | Spool / Coil / Drum |
| Highlight | CuSi3Mn1 thermal spray wire,silicon bronze spray wire,thermal spray wire corrosion protection |
||
Product Description
Product Description
CuSi3Mn1 thermal spray wire is a silicon bronze alloy wire containing approximately 3% silicon and 1% manganese, designed for thermal spraying to produce wear-resistant and corrosion-resistant coatings. Compared with pure copper coatings, CuSi3Mn1 provides higher strength, better hardness, and improved resistance to abrasion while maintaining good corrosion resistance.
It is suitable for arc spray and flame spray processes, producing uniform coatings with good adhesion for surface protection and dimensional restoration.
Key Features
-
Silicon bronze alloy (CuSi3Mn1) with enhanced wear resistance
-
Good corrosion resistance in industrial and marine environments
-
Higher hardness and strength than pure copper coatings
-
Strong adhesion and uniform coating structure
-
Suitable for arc spray and flame spray processes
-
Stable wire feeding and consistent coating quality
Typical Chemical Composition (Approx.)
| Element | Cu | Si | Mn | Others |
|---|---|---|---|---|
| wt.% | Balance | 2.8 – 3.5 | 0.8 – 1.2 | ≤ 0.5 |
Typical Specifications
| Item | Specification |
|---|---|
| Product | CuSi3Mn1 Thermal Spray Wire |
| Alloy | Silicon Bronze |
| Diameter | 1.6 mm / 2.0 mm / 2.5 mm / 3.0 mm (customizable) |
| Process | Arc Spray / Flame Spray |
| Coating Thickness | 50 – 2000 μm (customizable) |
| Melting Range | Approx. 950 – 1020°C |
| Surface Finish | Bright / copper-coated optional |
| Packing | Spool / Coil / Drum |
| MOQ | Negotiable |
Applications
-
Bearing seats and sliding surfaces
-
Shafts and journals
-
Valve parts and pump components
-
Anti-corrosion coatings for steel parts
-
Surface rebuilding and dimensional restoration
Advantages
-
Better wear resistance than CuSn1 and pure copper
-
Good corrosion resistance with higher mechanical strength
-
Easy spraying with stable wire feeding
-
Customizable diameter and packaging
-
Stable quality with fast delivery
Supply & Delivery
-
Supply Capacity: 5,000 – 10,000 kg per month (adjustable based on order)
-
Lead Time: 10–25 days depending on specifications and quantity
-
Packing: Standard export packing in cartons or wooden crates; custom packaging available upon request
One-Line Inquiry Pitch
Please advise your spraying process (arc or flame), wire diameter, coating thickness, and application. We will recommend the suitable CuSi3Mn1 thermal spray wire for your project.
